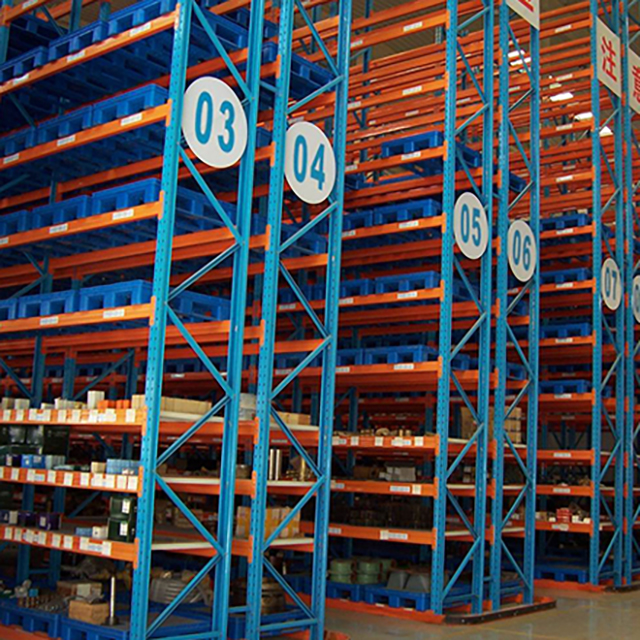

A miscalculation in rack dimensions by mere inches leads to wasted space, equipment incompatibility, or structural failure. Facility managers face the complex challenge of matching existing building constraints—like ceiling height and column spacing—with standard inventory profiles and material handling equipment. Designing a layout without precise dimensional planning creates severe operational bottlenecks. Improper rack sizing slows down inventory throughput, increases the risk of product damage, and creates unsafe working conditions for forklift operators.
This guide provides a technical framework for evaluating standard rack dimensions. You will learn how to align your physical building constraints with the exact specifications required for safe material handling. By understanding the math behind upright depths, beam lengths, and aisle widths, procurement teams can specify systems that maximize storage density, maintain strict safety compliance, and support seamless operational throughput.
Pallet Dimensions Dictate Rack Depth: The standard 40” x 48” GMA pallet requires a 42” or 48” upright depth to ensure proper overhang and load distribution.
Beam Length Math is Non-Negotiable: Standard beam lengths (typically expressed as 8', 9', 10', and 12') are calculated based on pallet width plus mandatory spacing (typically 3 to 4 inches between pallets and uprights) for safe forklift operation.
Aisle Widths Drive System Selection: The choice between selective pallet racking and high-density systems like double deep pallet racking hinges heavily on the turning radius of existing material handling equipment.
Compliance Overrides Capacity: Fire codes (flue space) and seismic zone requirements dictate final rack heights, column profiles, and structural reinforcement, superseding theoretical maximum storage density.
Rack design cannot begin without a finalized pallet specification. Designing warehouse pallet racking for average pallets leads to dangerous overhangs or wasted beam space. Facility managers often make the mistake of measuring the available floor space first, rather than starting with the load itself. If the rack dimensions do not perfectly match the pallet dimensions, operators will struggle to place loads squarely on the beams. This misalignment causes point-loading on wire decks, increases the risk of rack collapse, and drastically reduces the speed at which forklift drivers can deposit or retrieve inventory.
The Grocery Manufacturers Association (GMA) standard pallet is the most common footprint in North America. It measures 40 inches wide by 48 inches deep. The metric equivalent is approximately 1016mm by 1219mm. Understanding the anatomy of this specific pallet is mandatory for calculating rack dimensions.
A standard GMA pallet features stringers that run the 48-inch depth and deck boards that span the 40-inch width. When placed in a rack system, the bottom boards must make solid contact with both the front and rear load beams. The structural integrity of the rack relies on the load being distributed evenly across these beams. If a non-standard pallet is used, or if the standard pallet is loaded improperly, the weight distribution shifts, compromising the stated capacity of the rack components.
Pallet orientation dictates the required beam length and upright depth. The standard operational orientation places the pallet 40 inches wide facing the aisle and 48 inches deep into the rack. This configuration maximizes the number of pallet positions along a single row. It also provides forklift operators with easy access to the fork pockets.
Orienting the pallet 48 inches wide and 40 inches deep changes the entire mathematical model. This wider orientation requires longer beams and shallower upright frames. While it can sometimes solve specific aisle clearance issues, it generally reduces overall lane density. Wider orientations also require operators to navigate different fork pocket alignments, which can slow down picking operations. Facility designers must weigh the trade-offs between lane density, forklift accessibility, and the physical constraints of the building footprint.
Every component in a rack system has specific dimensional requirements that translate directly to operational outcomes. You must evaluate uprights, beams, and decking as an integrated mathematical system rather than isolated parts. A failure to account for the exact dimensions of one component will cascade through the entire layout, resulting in lost storage positions or safety violations.
The industry standard upright depths are 42 inches and 48 inches. For a standard 48-inch deep pallet, a 42-inch deep upright frame is universally recommended. This creates a deliberate waterfall effect. The pallet overhangs the front and rear beams by exactly 3 inches.
This 3-inch overhang is a non-negotiable safety feature. It ensures the structural stringers of the pallet rest completely on the load beams, rather than balancing precariously on the inner edges. It also provides forklift operators with a visual cue, allowing them to confirm the pallet is seated correctly. Using a 48-inch deep frame for a 48-inch deep pallet requires the operator to place the load with zero margin for error. If the pallet is pushed even one inch too far, it risks falling through the back of the rack.
Column profiles also impact total row length. Standard teardrop columns typically measure 3 inches by 3 inches. Heavy-duty structural columns may measure 4 inches by 3 inches. When calculating a continuous row of twenty bays, that extra inch per column adds up, potentially pushing the final rack structure into a designated pedestrian walkway or building column.
Baseplates are welded to the bottom of the upright columns and anchor the entire structure to the concrete floor. Standard baseplates measure 5 inches by 8 inches, but seismic zones often require oversized plates measuring 8 inches by 8 inches or larger. Installers use steel shims under these baseplates to plumb the racks on uneven concrete floors. If a rack is out of plumb, the stated weight capacity drops significantly, creating an immediate collapse hazard.
Standard upright heights are available in increments starting from 8 feet and extending beyond 40 feet. Calculating the maximum safe height requires strict adherence to building codes and equipment limitations. You cannot simply build racks to the ceiling.
The formula for calculating maximum safe height involves taking the maximum reach of your highest-lifting forklift and subtracting the required lift-off clearance. Operators need 4 to 6 inches of vertical space above the pallet to safely lift it off the beam before reversing. Additionally, fire codes mandate a minimum clearance between the top of the highest stored load and the building's fire sprinklers. This clearance is typically 18 to 36 inches, depending on the specific sprinkler technology and local fire marshal regulations.
Standard beam lengths dictate how many pallets can fit in a single bay. The most common lengths are 96 inches (8 feet), 108 inches (9 feet), 120 inches (10 feet), and 144 inches (12 feet). Specialty applications may utilize 48-inch beams for single-pallet picking stations or 168-inch beams for oversized loads.
The mathematical breakdown for a standard 96-inch beam holding two GMA pallets is precise. You start with two 40-inch wide pallets, totaling 80 inches of load width. Safe operation requires 3 inches of clearance between the left upright and the first pallet. You need 4 inches of clearance between the two pallets. Finally, you need another 3 inches between the second pallet and the right upright.
Adding these figures together (80 + 3 + 4 + 3) results in 90 inches of required space. This 90-inch requirement fits comfortably within the 96-inch beam length, leaving a safe margin for operator error. When designing pallet racking, this spacing math is non-negotiable. Reducing clearances to squeeze more pallets onto a shorter beam guarantees product damage and slows down handling times.
Beam face height typically ranges from 2.5 inches to 6 inches. The height and gauge of the steel directly correlate with load capacity and deflection limits. Taller beam faces distribute heavier loads more effectively across the upright columns.
The industry standard deflection limit for load beams is the length of the beam divided by 180 (L/180). For a 96-inch beam, the maximum allowable bowing under a full load is roughly half an inch. Excessive deflection indicates the beam is overloaded or structurally compromised. Selecting the correct beam face size ensures the system remains rigid, preventing catastrophic failure under heavy inventory loads.
The beam connectors, or endpieces, feature pins or rivets that drop into the upright column slots. Standard teardrop connectors use a gravity-lock design, where the downward force of the pallet weight wedges the pins tighter into the teardrop-shaped holes. Safety clips or bolts are then installed to prevent accidental upward dislodgement if a forklift operator clips the bottom of the beam during a lift.
Beam Length (Inches) | Face Height (Inches) | Pallet Capacity (Standard GMA) | Estimated Max Capacity per Pair (lbs) |
|---|---|---|---|
96" | 3.5" to 4.0" | 2 Pallets | 4,000 - 5,000 |
108" | 4.0" to 4.5" | 2 Pallets (Oversized) | 4,500 - 6,000 |
120" | 4.5" to 5.0" | 3 Pallets (Narrow) | 5,000 - 7,000 |
144" | 5.0" to 6.0" | 3 Pallets (Standard) | 6,000 - 8,000 |
Wire decking provides a secondary safety net for misplaced pallets and prevents loose cartons from falling to lower levels. Standard wire decks are designed to fit standard 42-inch and 48-inch deep frames. They come in two primary styles: flush and waterfall.
Waterfall decking wraps over the outside edge of the load beam, securing the deck in place and preventing it from shifting during loading. Flush decking sits inside the beam step, creating a smooth front edge. The choice of decking impacts the usable clear height between beam levels. You must account for the thickness of the wire deck and its underlying support channels when calculating the vertical spacing required for your specific pallet heights.
In applications where wire decking is not used, facilities install pallet support crossbars. These flanged steel bars drop into the beam steps and run perpendicular to the load beams. They provide structural support for weak or damaged pallets and prevent them from bowing under heavy loads. A standard 96-inch beam bay typically requires two crossbars per pallet position, totaling four crossbars per level.
Single-deep systems represent the most common storage architecture. The footprint of selective pallet racking is straightforward, typically consisting of back-to-back rows separated by access aisles. The primary operational trade-off is footprint efficiency versus accessibility.
This system offers 100% SKU selectivity, meaning any pallet can be accessed without moving another. However, this high selectivity requires a significant amount of floor space dedicated to aisles. Facilities with high SKU counts and rapid turnover rely on these standard dimensions to maintain picking speed, accepting the lower overall storage density as a necessary operational cost.
To increase density, facilities often deploy systems that store pallets two positions deep. The dimensional requirements for double deep pallet racking involve placing two standard selective racks back-to-back without an intervening aisle. This configuration effectively cuts the required aisle space in half.
Implementing this system requires specialized material handling equipment. Standard counterbalance forklifts cannot reach the rear pallet position. Facilities must invest in deep-reach trucks equipped with extending pantograph mechanisms. Additionally, the rack dimensions must accommodate the reach truck's outriggers. This often requires installing a bottom beam just above the floor, which alters the vertical clearance calculations for all subsequent levels.
Drive-in and push-back systems abandon standard single-deep dimensions in favor of extreme density. Drive-in systems are measured in pallet positions deep, often storing loads five to ten positions deep in a single lane. The dimensions of the rails must perfectly match the pallet width, as the forklift physically drives into the rack structure.
Push-back systems utilize nested carts on sloped rails. When calculating dimensions for push-back systems, you must account for the vertical space consumed by the cart stack and the slope of the rails. This slope reduces the available clear height at the rear of the system. Facility managers must carefully measure ceiling clearances to ensure the highest rear pallet does not violate fire sprinkler regulations.
The distance between rack rows dictates the type of equipment you can operate. Aisle width planning is a mandatory step that links rack dimensions to capital equipment expenditures. Misjudging aisle requirements results in equipment collisions and severe structural damage to the uprights.
Wide aisles typically measure 12 feet or more. This dimension accommodates standard sit-down counterbalance forklifts, allowing them to turn 90 degrees and square up to the rack face comfortably. Narrow aisles range from 8 to 10 feet. These dimensions require stand-up reach trucks, which have a tighter turning radius. Very Narrow Aisle (VNA) configurations compress the space to 5 to 7 feet. VNA systems require specialized wire-guided or articulated turret trucks that do not turn within the aisle, but rather pivot their forks to retrieve loads.
Aisle Type | Typical Width Range | Compatible Forklift Equipment | Storage Density Impact |
|---|---|---|---|
Wide Aisle | 12' - 14' | Sit-down Counterbalance | Lowest Density |
Narrow Aisle | 8' - 10' | Stand-up Reach Truck | Medium Density |
Very Narrow Aisle (VNA) | 5' - 7' | Turret Truck / Order Picker | High Density |
To determine the exact aisle width needed for your specific forklift, you must calculate the Right-Angle Stack (RAS). This is the minimum space required for a forklift to turn 90 degrees and insert a pallet into the rack.
Measure the forklift's basic turning radius. Check the manufacturer's specification sheet for the exact turning radius of the unladen truck.
Determine the load length. For a standard GMA pallet oriented correctly, this is 48 inches.
Add the load length to the turning radius. This gives you the base dimension for the turn.
Factor in the load clearance. Add a minimum of 6 to 12 inches to account for operator error and safe maneuvering.
Calculate the final aisle width. The sum of the turning radius, load length, and clearance equals your absolute minimum aisle width.
Rack dimensions must be mapped precisely around existing building architecture. Building columns present a significant challenge. The most efficient layouts hide building columns within the longitudinal flue space between back-to-back rack rows. If the column spacing does not align with the standard beam lengths, you will lose pallet positions.
Floor slab thickness and concrete compressive strength (PSI) also dictate permissible rack heights. A standard 6-inch slab poured at 3000 PSI can typically support standard loads. However, taller systems or heavier loads generate massive point loads at the baseplates. If the concrete cannot support the weight, the rack will sink or crack the slab. Larger baseplates can distribute this weight over a wider area, but these dimensions must be calculated by a structural engineer prior to installation.
Overhead obstructions like HVAC ducts, lighting fixtures, and gas lines must be mapped on the facility CAD drawing before finalizing rack heights. You must maintain a minimum clearance of 18 inches below any overhead obstruction to comply with OSHA regulations and ensure safe forklift mast extension.
Fire safety compliance heavily influences rack dimensions. Flue spaces are the vertical lines of sight that allow heat to rise and sprinkler water to descend. Longitudinal flue space runs parallel to the rack row, separating back-to-back uprights. Transverse flue space runs perpendicular, separating the pallets on the beams.
The National Fire Protection Association (NFPA) generally requires a minimum 6-inch longitudinal flue space. To maintain this exact dimension, installers use steel row spacers bolted between the rear columns of back-to-back frames. If row spacers are omitted or incorrectly sized, the racks can shift, closing the flue space and resulting in immediate failure during a fire marshal inspection.
Geographic location directly impacts the physical dimensions of rack components. Facilities located in high seismic zones require heavily reinforced systems. A standard 3x3 inch upright column that meets code in the Midwest will fail seismic compliance in California.
Seismic engineering often dictates the use of 4x3 inch structural steel columns, thicker steel gauges, and enlarged seismic baseplates. The dimensions of the anchor bolts securing the baseplates to the concrete also increase significantly. These reinforced dimensions change the overall footprint of the system, requiring recalculations of aisle widths and row lengths to ensure the layout still fits within the building.
Upright frames consist of two vertical columns connected by horizontal and diagonal cross-bracing. In high seismic zones, the density and gauge of this bracing increase. The bracing pattern is engineered to absorb lateral forces during an earthquake, preventing the frame from twisting or buckling. Modifying or cutting this bracing to accommodate a tunnel bay or pedestrian walkway immediately voids the engineering certification.
Operational safety relies on strict adherence to clearance tolerances. The 4 to 6 inches of vertical lift-off clearance is mandatory. If an operator attempts to lift a pallet with insufficient vertical space, the load will strike the beam above it. This impact can dislodge the beam from the upright, causing a cascading failure of the entire bay.
Side clearances are equally important. Maintaining 3 to 4 inches between pallets prevents loads from snagging on each other during retrieval. When calculating total system dimensions, these empty spaces must be treated as physical components of the rack. Ignoring clearance tolerances to increase density creates a highly dangerous operational environment.
To ensure your warehouse storage system is safe, compliant, and optimized for your specific material handling equipment, execute the following steps:
Audit your existing pallet inventory to confirm exact dimensions and maximum load weights before ordering uprights or beams.
Measure the right-angle stack (RAS) requirements of your current forklift fleet to establish hard minimums for your aisle widths.
Verify your concrete slab thickness and PSI capacity with a structural engineer to confirm it can support the intended baseplate point loads.
Draft a detailed CAD layout that maps all rack rows around building columns, pedestrian walkways, and overhead obstructions.
Consult your local fire marshal to confirm specific longitudinal flue space and sprinkler clearance regulations for your municipality.
A: The industry standard depth is 42 inches for accommodating standard 48-inch deep pallets. This specific dimension allows the pallet to overhang the front and rear load beams by exactly 3 inches, ensuring the structural stringers rest securely on the steel while providing operators with a clear visual alignment guide.
A: Beam length is calculated by adding the total width of the stored pallets plus mandatory operational clearances. For two 40-inch wide pallets, you add 80 inches of load width, plus 3 inches between the uprights and pallets, and 4 inches between the two pallets, requiring a 96-inch beam.
A: The most common standard beam lengths are 96 inches (8 feet), 108 inches (9 feet), 120 inches (10 feet), and 144 inches (12 feet). Specialty sizes include 48-inch beams for single-pallet picking stations and 168-inch beams for oversized or multiple narrow loads.
A: Selective racking requires an access aisle for every single-deep row, consuming more floor space. Double deep systems place two selective racks back-to-back without an intervening aisle, effectively reducing required aisle space by half, but necessitating specialized deep-reach trucks to access the rear pallet positions.
A: Back-to-back racks typically require a minimum of 6 inches of space between them. This gap, known as the longitudinal flue space, is mandated by fire codes to allow heat to vent upward and sprinkler water to penetrate down through the storage system.
A: Rack height is limited by three factors: the maximum vertical reach of your forklift fleet, the ceiling height of the building, and mandatory fire codes. You must leave 4 to 6 inches of lift-off clearance above the top load, plus 18 to 36 inches of clearance below the fire sprinklers.
