How Do You Calculate Beam Capacity for Selective Pallet Racking?

Warehouse safety and storage efficiency rely entirely on precise engineering calculations, not vendor estimates or historical assumptions. Calculating beam capacity correctly ensures structural components handle operational loads without risking catastrophic failure. Improper capacity planning introduces severe dual risks. Under-engineering leads to rack failure, inventory loss, and fatal accidents on the warehouse floor. Over-engineering wastes capital expenditure on unnecessary steel and oversized components. Facility managers must establish a definitive framework for calculating beam capacity. This requires evaluating structural tolerances and selecting the correct heavy duty pallet racks to meet Rack Manufacturers Institute (RMI) standards. Proper calculation dictates every aspect of warehouse design, from beam length selection to upright frame spacing. Understanding these metrics guarantees a safe, compliant, and highly efficient storage environment.

• The Baseline Formula: Required beam capacity equals the maximum unit load multiplied by the number of pallet positions per beam level.

• The Deflection Standard: Safe beam deflection is strictly limited to the beam length divided by 180 (L/180) under a uniformly distributed load.

• System Interdependency: Beam capacity is only one half of the equation; vertical beam spacing directly dictates the overall upright frame capacity.

• Compliance & Verification: All selective pallet racking systems require certified load plaques and periodic engineering audits to maintain compliance.

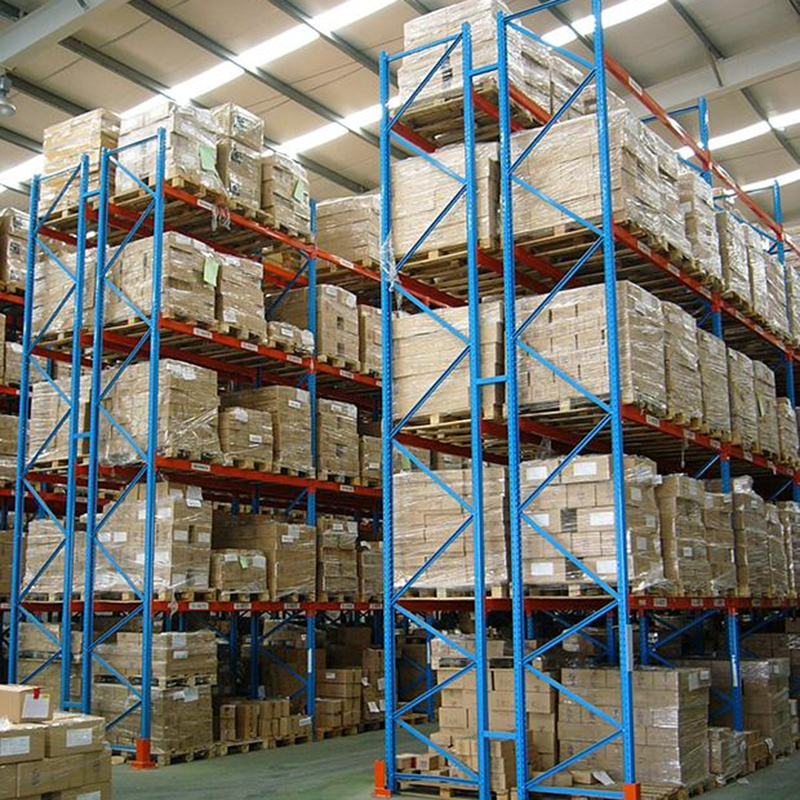

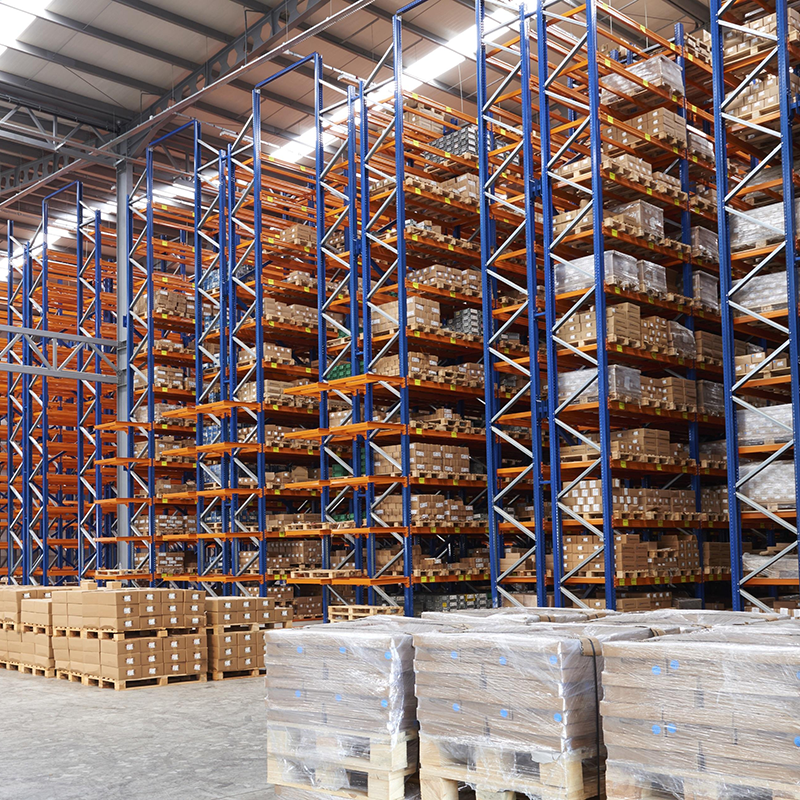

The Core Formula: Calculating Beam Capacity for Selective Pallet Racking

Determining Required Beam Length and Lateral Clearances

Pallet dimensions directly dictate the required beam length in any storage system. You must measure the width and depth of the pallets used in your facility. Standard safety clearance rules apply to all configurations. You need 3 inches of clearance between the pallet and the upright frame. You also need 4 inches of clearance between adjacent pallets on the same beam level. These clearances allow forklift operators to place and retrieve loads safely without striking the frames or neighboring inventory.

Consider a physical sizing example for a standard setup. You want to store two standard 40-inch wide pallets side-by-side. The calculation follows a strict sequence. Start with 3 inches for the left clearance. Add 40 inches for the first pallet. Add 4 inches for the middle clearance. Add 40 inches for the second pallet. Finally, add 3 inches for the right clearance. The total equals 90 inches. Manufacturers do not typically produce 90-inch beams. You must round up to the standard 96-inch beam length. This provides slightly more clearance and ensures standard component compatibility.

Defining the Maximum Unit Load

A unit load consists of multiple weight components. You must account for the weight of the product itself. You must add the weight of the wooden or plastic pallet. You must also include the weight of all packaging materials, stretch wrap, and strapping. Failing to include the pallet weight is a common engineering error that compromises system safety. A standard wooden pallet weighs between 40 and 60 pounds. When you multiply that across thousands of pallet positions, the unaccounted weight becomes a massive structural liability.

You must design the system for the heaviest possible pallet in the facility. Do not use the average pallet weight for your calculations. If your average pallet weighs 1,500 lbs, but a specific product line produces 2,500 lb pallets, you must engineer the beams for the 2,500 lb load. Designing for averages guarantees structural failure when operators inevitably place heavy loads on under-engineered beams. Every beam level must safely support the maximum potential load it might encounter during standard operations.

The Standard Calculation Method

The primary equation for beam capacity is straightforward. You multiply the Maximum Unit Load by the Number of Pallet Positions per Beam Level. This gives you the Required Beam Capacity. This formula assumes you are using standard pallets and uniform load distribution. It forms the baseline for all structural storage planning.

1. Identify the maximum unit load weight, including the pallet and packaging.

2. Determine the number of pallets stored per beam level.

3. Multiply the maximum unit load by the number of pallets.

4. Select a beam pair rated for at least that total calculated weight.

Let us walk through a practical example. Your maximum unit load is 2,500 lbs. You plan to store two pallets per beam level. You multiply 2,500 lbs by 2. This equals 5,000 lbs. You require a capacity of 5,000 lbs per pair of beams. Beam capacities are always rated and sold per pair, not per individual beam. A 5,000 lb capacity rating means the front and rear beams together can support that weight. Never assume a single beam holds the rated capacity.

Uniformly Distributed Loads (UDL) vs. Point Loads

Manufacturer capacity charts always assume a Uniformly Distributed Load (UDL). A UDL means the weight spreads evenly across the entire length of the beams. Standard wooden pallets with intact bottom boards naturally create a UDL. The weight transfers evenly to the front and rear beams, allowing the steel to perform exactly as engineered. This is the standard operating assumption for Selective Pallet Racking.

Point loading introduces severe structural risks. A point load concentrates massive weight into a small area on the beam. This occurs when using undersized pallets, storing heavy machinery parts directly on wire decking, or using containers with small metal feet. Point loads drastically reduce the effective beam capacity. A beam rated for 5,000 lbs UDL might fail at 2,000 lbs under a severe point load. You must consult a structural engineer if your operations involve point loading.

Engineering Tolerances and Deflection Limits

Understanding the L/180 Deflection Rule

The Rack Manufacturers Institute (RMI) establishes strict standards for beam deflection. Deflection refers to the natural bowing of a loaded beam. The standard dictates a maximum permissible deflection of the beam length (in inches) divided by 180. This L/180 rule applies under a uniformly distributed load. It ensures the beam remains elastic and returns to its original shape when unloaded.

Consider a calculation example for a standard 96-inch beam. You divide 96 by 180. The result is 0.53 inches. A fully loaded 96-inch beam can safely bow downward by just over half an inch. Visual deflection up to this limit is engineered into the steel. It does not inherently indicate failure, provided the load remains within rated limits. Operators often panic when they see bowing beams, but minor deflection is a normal structural response.

The 0.95 Multiplier for Single-Pallet Configurations

Storing only one pallet per shelf level changes the engineering dynamics. Standard capacity charts assume multiple pallets distribute weight across different sections of the beam pair. A single pallet concentrates the entire load in the center of the beams. This alters the stress distribution and increases the likelihood of localized deflection.

You must apply a 0.95 multiplier in single-pallet scenarios. Take the standard capacity value from the manufacturer's chart and multiply it by 0.95. This reduces the rated capacity by 5% to account for the altered load distribution dynamics. If a beam pair is rated for 4,000 lbs, its effective capacity for a single centered pallet is 3,800 lbs. This engineering nuance prevents overloading in specialized storage configurations.

Beam Specifications vs. Upright Frame Capacity

The Critical Relationship Between Beam Spacing and Frame Strength

Beam capacity and frame capacity are mutually dependent. You cannot calculate one without considering the other. The upright frame supports the entire weight of all beam levels in that bay. The vertical distance between beam levels dictates the frame's overall strength. This vertical distance is known as the unsupported span.

Increasing the unsupported span exponentially decreases the upright frame's load-bearing capacity. A frame with beams spaced every 48 inches can hold significantly more weight than the exact same frame with beams spaced every 96 inches. The beams act as horizontal ties that stabilize the upright columns. Removing these ties to accommodate taller loads weakens the column, making it susceptible to buckling under heavy vertical loads.

Step-by-Step Upright Frame Capacity Calculation

You must calculate the total required capacity for a single upright frame accurately. This involves summing the weight of all beam levels supported by that specific frame. You exclude the floor-stored pallets from this calculation. The weight of floor pallets transfers directly to the concrete slab, not the upright frame.

1. Count the total number of elevated beam levels in the bay.

2. Determine the maximum weight capacity required for each level.

3. Multiply the number of levels by the weight per level.

4. Compare this total to the manufacturer's frame capacity chart at your specific vertical beam spacing.

Consider a standard bay configuration. You have 4 elevated beam levels. Each level carries 5,000 lbs. You multiply 4 levels by 5,000 lbs. The frame must support at least 20,000 lbs. You must then check the manufacturer's frame capacity chart. You must verify that the specific frame model can support 20,000 lbs at your planned maximum vertical beam spacing. If it cannot, you must select a heavier gauge frame or reduce your beam spacing.

Calculating Vertical Clearance and Beam Placement

Proper vertical clearance prevents product damage and ensures smooth forklift operations. You must calculate the required vertical spacing between beam levels using a specific formula. Take the Maximum Pallet Height. Add 4 inches for lift clearance. Add the Beam Profile Height. Round this total to the next 2-inch increment, as upright frames typically feature holes punched on 2-inch centers.

Optimizing this clearance impacts the total number of levels you can fit in a bay. It also impacts the subsequent frame capacity requirements. If your load is 48 inches tall, add 4 inches for lift-off. Add a 4-inch beam face. The total is 56 inches. You place your beams every 56 inches vertically. This precise calculation maximizes vertical cube utilization while maintaining strict safety margins for equipment operators.

Evaluating Heavy Duty Pallet Racks for High-Capacity Needs

Roll-Formed vs. Structural Steel Beams

Warehouse managers must choose between roll-formed and structural steel components. Roll-formed steel is cold-rolled into shape. It typically features a teardrop style connection. It is highly cost-effective and perfectly suitable for standard loads and normal warehouse environments. Structural steel is hot-rolled and utilizes heavy bolted connections. It offers significantly higher impact resistance and overall structural rigidity.

You must establish decision criteria for upgrading to structural systems. High forklift traffic areas benefit greatly from structural steel due to its abuse resistance. Load weights exceeding 3,000 lbs per pallet often require structural components to maintain safe deflection limits. Freezer and cold storage environments also favor structural steel. Cold temperatures can make roll-formed steel brittle, whereas structural steel maintains its integrity in extreme conditions.

Step Beams vs. Box Beams: Capacity Trade-offs

Beam profile design impacts both capacity and functionality. Step beams feature a built-in ledge along the inside edge. This ledge accommodates wire decking, crossbars, or solid steel panels. Step beams are highly versatile for standard selective pallet racking. They allow facilities to store varied box sizes and non-palletized goods safely on the decking.

Box beams utilize a four-sided tubular design. They do not have a built-in step for decking. This closed-tube design provides superior resistance to torsional twist under heavy loads. Box beams are ideal for extreme high-capacity requirements where wire decking is unnecessary. Facilities storing heavy raw materials, metal coils, or dense liquid containers often rely on box beams to maximize pure weight capacity per level.

Implementation Risks and Safety Mitigation

Common Calculation and Implementation Errors

Facility managers frequently make critical calculation errors. Ignoring the weight of the wooden pallet is the most common mistake. A standard wooden pallet weighs between 40 and 60 lbs. Across thousands of pallet positions, this unaccounted weight stresses the system. Failing to account for asymmetric loading also causes failures. Placing a 3,000 lb pallet next to a 500 lb pallet on the same beam pair creates uneven stress and potential twisting.

Mixing and matching different manufacturers' beams and uprights is highly dangerous. This creates a mismatched rack system. Even if the teardrop connections seem to fit, the locking tolerances and steel yields differ. Mixing components immediately voids all engineered capacity ratings and manufacturer warranties. You must use matching components from a single manufacturer to guarantee structural integrity.

RMI Compliance and Load Plaques

Legal and safety requirements mandate the installation of highly visible load capacity plaques. You must mount these plaques at the end of every rack aisle. They serve as the primary reference point for forklift operators and safety inspectors. Operating a system without load plaques violates fundamental warehouse safety protocols.

The load plaque must display specific engineering data. It must show the maximum permissible beam load. It must display the maximum upright frame load. Crucially, it must detail the exact beam spacing configuration used to calculate that frame load. If you alter the beam elevations later, you must recalculate the capacities and install updated load plaques to remain compliant.

Seismic Considerations and Dynamic Loads

Geographic location fundamentally alters capacity calculations. Standard capacity charts assume static loads in non-seismic areas. Seismic zones introduce dynamic lateral forces during earthquakes. The ground movement forces the rack structure to sway, exponentially increasing the stress on baseplates, anchors, and beam connections.

Seismic zones require higher safety factors. You often need thicker steel gauges for uprights and beams. You require specific, oversized baseplate anchoring to handle dynamic lateral forces. These seismic engineering requirements completely supersede standard static load calculations. You must consult a licensed structural engineer familiar with local seismic codes to design a compliant system in these regions.

Conclusion

• Conduct a facility-wide load audit to document exact pallet dimensions, maximum weights, and current beam spacing configurations.

• Verify that all existing storage systems have accurate, highly visible RMI-certified load capacity plaques installed at the end of every aisle.

• Consult with a licensed structural engineer to recalculate frame capacities before altering any vertical beam elevations.

• Implement strict operational rules prohibiting point loading and asymmetric pallet placement on standard beam levels.

FAQ

Q: What is the standard deflection limit for pallet rack beams?

A: The standard deflection limit is the length of the beam divided by 180 (L/180). For a 96-inch beam, the maximum safe bowing under a uniformly distributed load is 0.53 inches. This visual deflection is engineered into the steel and is safe.

Q: How do I calculate the required beam length for my selective pallet racking?

A: Add the width of your pallets plus required safety clearances. For two 40-inch pallets, add 3 inches (left) + 40 inches (pallet) + 4 inches (middle) + 40 inches (pallet) + 3 inches (right) = 90 inches. Round up to the standard 96-inch beam.

Q: How does vertical beam spacing affect upright frame capacity?

A: Increasing the vertical distance between beam levels decreases the upright frame's load-bearing capacity. Beams act as horizontal ties. Larger unsupported spans make the upright columns more susceptible to buckling under heavy vertical loads.

Q: How do you calculate the overall upright frame capacity requirement?

A: Sum the maximum weight of all elevated beam levels supported by that specific frame. Exclude pallets stored directly on the floor. For example, four levels holding 5,000 lbs each require a frame capacity of at least 20,000 lbs.

Q: Can I mix and match pallet rack beams from different manufacturers if the dimensions are the same?

A: No. Mixing components from different manufacturers voids all engineered capacity ratings and warranties. Locking tolerances and steel yields vary, creating severe safety risks. Always use matching components from a single manufacturer.

Q: What is the difference between a uniformly distributed load and a point load in racking?

A: A uniformly distributed load spreads weight evenly across the entire beam length, which is how beams are rated. A point load concentrates weight in a small area, drastically reducing the beam's effective capacity and risking failure.
