Views: 0 Author: Site Editor Publish Time: 2026-07-16 Origin: Site

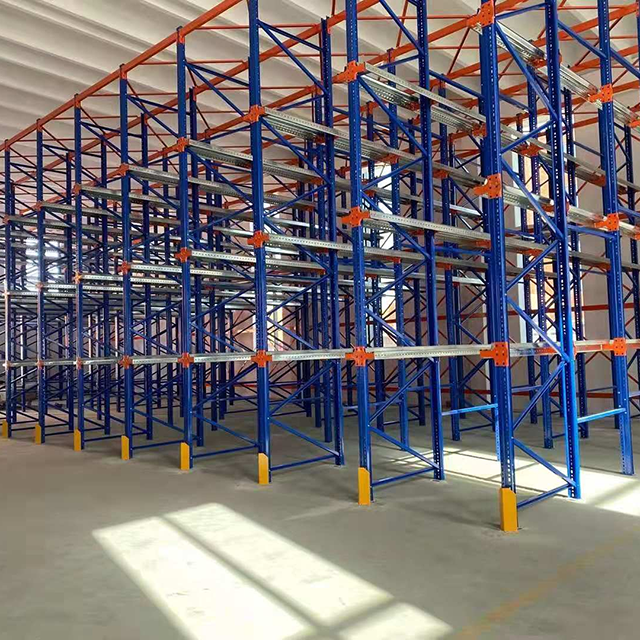

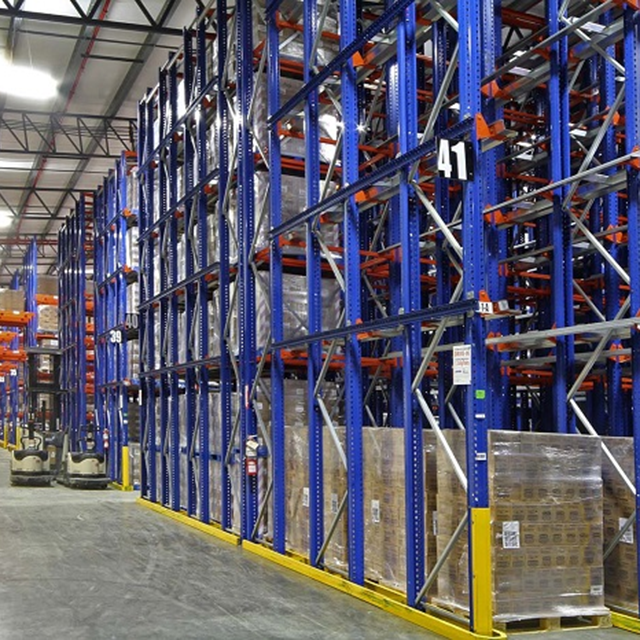

High-density storage systems are only as effective as the moving parts that interact with them. In a system where operators physically drive into the structure, equipment compatibility is the primary failure point. Installing Drive in Racking without first auditing existing pallets, forklifts, and floor conditions leads to severe structural damage, safety hazards, and operational bottlenecks. Retrofitting a rack system to accommodate mismatched equipment is financially prohibitive.
To ensure a safe, compliant, and efficient installation, warehouse operators must conduct a rigorous technical evaluation of their fleet, pallet inventory, and facility infrastructure. This guide details the exact specifications, tolerances, and mechanical requirements required before finalizing a drive-in system design.
Pallet Integrity is Non-Negotiable: Drive in racking supports pallets only by their edges; pallets must have specific bottom-board orientations, zero structural defects, and strict deflection limits to prevent collapse.
Forklift Dimensions Dictate Rack Design: The clear opening of the rack bay must accommodate the forklift's maximum width (including the mast, side-shifters, overhead guard, and tires) with a minimum of 3 to 4 inches of clearance on both sides.
Operational Execution Overrides Standard Habits: Operators must follow strict step-by-step entry/exit protocols, maintaining zero mast tilt and perfectly straight alignment to prevent catastrophic upright impacts.
Facility Prerequisites Matter: Standard installations require a minimum 6-inch concrete slab with at least 3,000 PSI compressive strength, high floor flatness (FF) ratings, and heavy-duty structural anchoring.
Cold Storage Requires Specialized Specs: Cold storage drive in racking demands specific forklift modifications (cab enclosures, specialized tires) and tighter operational tolerances due to environmental constraints and ice hazards.
A successful implementation maximizes storage density using LIFO inventory management without increasing product damage or rack impact rates. Understanding the operational mechanics helps facility managers align equipment capabilities with structural limitations. When you design a system where a 10,000-pound machine enters a narrow steel tunnel, the margin for error drops to zero. The entire operation hinges on precise alignment and structural rigidity.
Standard LIFO drive in racking requires the forklift to enter and exit from the same aisle. FIFO drive-thru racking allows entry from one side and exit from the opposite. The chosen configuration dictates forklift travel patterns and turning space requirements. Operators must account for adequate maneuvering clearance at the entry points. If the aisle is too narrow, drivers will attempt angled entries, which inevitably leads to upright strikes and compromised structural integrity.
Because drive in pallet racking lacks horizontal beams across the bay, the system relies entirely on the structural integrity of the pallet, rigid column anchoring, and the precision of the forklift operator. The rails support the pallet only along the edges. Any failure in pallet strength or operator alignment transfers stress directly to the upright frames. The absence of step beams means the system's lateral stability depends heavily on overhead tie beams and heavy-duty base anchoring.
Facility managers face a trade-off between standardizing the pallet pool and engineering custom rack rails. Standardizing pallets requires a high upfront commitment but ensures system reliability. Engineering custom rails to accommodate variable pallets increases capital expenditure and reduces operational flexibility. A uniform pallet pool remains the most reliable approach for edge-supported storage. Mixing pallet types in a single drive-in bay is a recipe for load failure.
Pallets serve as the horizontal load-bearing component in a drive-in system. Their dimensions, construction, and structural integrity directly determine system safety. You cannot use inferior or damaged pallets in this application.
Uniform pallet sizes, such as standard 48" x 40" GMA pallets, are mandatory. The pallet depth must match the rail support depth to ensure an adequate resting surface. Variations in pallet width prevent proper seating on the support rails, leading to immediate collapse risks. If a pallet is even one inch too narrow, it will slip off the rail under load.
Pallet Characteristic | Requirement for Drive-In Systems | Risk of Non-Compliance |
|---|---|---|
Width Consistency | Strict adherence to 40" (or engineered width) | Pallet slips through rails, causing localized collapse. |
Bottom Board Orientation | Perpendicular to support rails | Point loading causes board fracture and load failure. |
Deflection Limit | Maximum 1/180th of span under full load | Pallet binds on rails during retrieval or snaps. |
Condition | Grade A, no split stringers or missing blocks | Catastrophic failure when suspended by edges. |
Pallets must have bottom boards running perpendicular to the drive-in rails. This orientation distributes the load across the structural members. Stringer pallets generally provide better rail contact profiles than block pallets. Understanding these structural profiles helps prevent point-loading failures on the support rails. If bottom boards run parallel to the rails, the pallet will simply fall through the system.
Operators must check pallets prior to placing them in the rack. Facilities must enforce a zero-tolerance policy for cracked boards, split runners, missing blocks, or loose fasteners. A damaged pallet placed on edge supports will fail under load, causing a cascading collapse within the bay. Forklift drivers must be trained to reject substandard pallets at the receiving dock.
The maximum allowable pallet deflection under load typically equals 1/180th of the span. Using degraded, rented, or mixed-pool wooden pallets in edge-supported systems introduces severe risks. Excessive deflection causes the pallet to slip off the rails or bind during retrieval. Hardwood pallets are generally required to meet these strict deflection tolerances.
Weight must be evenly distributed across the pallet. Asymmetrical loading or product overhang alters the center of gravity, causing lopsided deflection. Overhanging product increases the risk of snagging on uprights during entry or exit, leading to structural impacts and product damage. Shrink wrapping must be tight and secure to prevent load shifting during transit.
The forklift serves as the dynamic component interacting with the static rack structure. The physical dimensions and operational capabilities of the lift equipment dictate the engineering parameters of the rack bays. You must measure your actual equipment, not just rely on manufacturer spec sheets.
Measure the widest point of the forklift, including the mast, overhead guard, and tires. The rack's clear bay width must be engineered around these specific dimensions. Insufficient clearance guarantees upright impacts during routine operation. A minimum of 3 to 4 inches of clearance on each side is the industry standard for safe operation.
Side-shifters, fork positioners, or pantograph reach mechanisms alter the forklift’s physical profile and weight distribution. These attachments require wider bay configurations. Operators must account for the maximum width of the carriage when fully shifted to either side. If a side-shifter is left engaged off-center, it will strike the rack upright upon entry.
The required right-angle stacking aisle width determines maneuverability. Operators need sufficient clearance to align the forklift perfectly square to the rack face before entering the bay. Tight aisles force angled entries, drastically increasing the likelihood of striking the front uprights. Aisle widths must accommodate the forklift's turning radius plus the length of the load.
The mast must remain perfectly vertical with zero tilt during entry and travel inside the bay. Even minor mast deflection at height can strike the overhead support rails or tie-beams. Operators must master the skill of traveling with a plumb mast to avoid structural damage. Tilt indicators can be installed on the mast to assist operators in maintaining a vertical position.
Lifting heavy loads to the upper levels of a drive-in system affects the forklift's residual capacity. Masts must reach the top rail with adequate lift-off clearance. Ensure the forklift maintains sufficient rated capacity at the maximum required lift height. Heavy loads at high elevations shift the center of gravity, requiring a highly stable lifting platform.
Cold storage drive in racking demands unique equipment specifications for freezer environments. Enclosed heated cabs increase the forklift's overall width. Specialized hydraulic fluids and polyurethane tires designed to maintain traction on cold, smooth concrete are mandatory. Ice hazards and reduced visibility require tighter operational tolerances. Condensation moving from cold to warm zones can also cause electronic sensor issues on the lift equipment.
The concrete slab and floor conditions provide the foundation for the entire storage system. Drive-in racking concentrates massive loads onto small baseplate footprints. You cannot install these systems on degraded or thin concrete.
Industry standards require a minimum 6-inch thick slab with a compressive strength of at least 3,000 PSI. This foundation supports baseplates, dynamic forklift wheel loads, and concentrated point loads. Insufficient slab thickness leads to concrete cracking and structural settling. Core drilling tests should be conducted prior to installation to verify slab thickness and rebar placement.
Infrastructure Component | Minimum Specification | Verification Method |
|---|---|---|
Concrete Thickness | 6 inches minimum | Core drilling / Ground Penetrating Radar |
Compressive Strength | 3,000 PSI | Review of original building plans / Core testing |
Floor Flatness (FF) | FF 50 or higher | Dipstick floor profiler measurement |
Anchoring | Heavy-duty wedge or epoxy anchors | Torque testing post-installation |
Minor floor variations are magnified at the top of the mast. A non-level floor causes the forklift mast to lean, drastically increasing the risk of striking the rack uprights at higher elevations. High floor flatness and levelness ratings are critical for safe operation. Grinding or leveling compounds may be required to correct floor deficiencies before rack installation.
Heavy-duty concrete anchors at the base of each upright are mandatory. Installers must verify strict vertical plumbness during setup. Proper anchoring ensures the dynamic forces of entering forklifts do not cause structural failure or progressive collapse. Shims must be used under baseplates to ensure uprights are perfectly vertical before final anchor torquing.
Integrate heavy-duty ground-mounted guide rails within the bays to physically deflect off-center forklifts. Column protectors and entry-side bullnose guardrails shield the front uprights from impact. These accessories mitigate the risk of operator error during alignment. Guide rails should be anchored independently of the rack uprights to prevent transferring impact forces to the storage structure.
Equipment and infrastructure mean nothing without disciplined execution. Operator behavior determines the longevity and safety of a drive-in storage system. Training must be specific to the exact rack configuration installed in your facility.
Operators must follow precise sequences for loading and unloading. Deviating from this sequence causes accidents.
Align the vehicle perfectly square to the bay before crossing the threshold.
Elevate the load to clearance height while remaining outside the rack structure.
Ensure the mast is perfectly vertical with zero tilt.
Enter the bay at a slow, controlled speed.
Set the pallet onto the support rails gently.
Back out completely straight before pivoting or tilting the mast.
Govern forklift speeds inside and immediately outside the racking system. High-speed maneuvers prevent operators from reacting to misalignment. Slow, deliberate movements ensure safe entry and exit without striking the rails or uprights. Facility managers should enforce strict speed limits in the drive-in aisles.
Implement a framework for daily equipment checks. Mandate the logging of forklift condition and immediate reporting of any rack damage. Support these reports with timestamped photographic evidence to counter under-reported impact incidents and track structural degradation. Any bent bracing or damaged rails must trigger an immediate lockout of that specific bay.
Specific, documented operator training for drive-in environments is required per OSHA 1910.178 and Rack Manufacturers Institute (RMI) safety best practices. Training must focus on the unique hazards of driving into confined rack structures and the critical importance of pallet inspection. Annual refresher courses should be mandatory for all operators interacting with the system.
Conduct a comprehensive fleet dimension audit, measuring the absolute widest points of all forklifts intended for use in the system.
Inspect the current pallet pool for structural uniformity and discard any pallets that fail deflection or bottom-board orientation requirements.
Install physical protection accessories like heavy-duty guide rails and column guards to defend against inevitable operator misalignment.
Consult a structural engineer to verify concrete slab capacity and floor flatness before issuing a purchase order for racking materials.
A: Standard counterbalance, reach trucks, or stand-up counterbalanced lifts can be used, provided their mast, overhead guard, and outer tire widths are narrower than the rack's clear opening width.
A: Yes, standard 48x40 wooden GMA pallets are common, but they must be in excellent structural condition with bottom boards running perpendicular to the rail direction, and zero split runners or broken deck boards.
A: Industry standards recommend a minimum of 3 to 4 inches of clearance on both sides of the widest part of the forklift (including the mast, carriage, and cabin).
A: Challenges include reduced visibility and wider profiles due to enclosed heated operator cabs, tire slippage on frost-covered floors, metal embrittlement, and reduced hydraulic response times.
A: Uneven floors cause the forklift to lean. A minor tilt at ground level translates to several inches of deviation at the top of the mast, which can result in the forklift or load striking the uprights or support rails.
A: Implement floor-mounted guide rails inside the bays, install heavy-duty column protectors on the outer uprights, mandate slow travel speeds, and enforce rigorous operator training on square-entry and straight-back exit maneuvers.
A: Drive-in racking operates on a LIFO basis with a single entry/exit point, requiring the forklift to back out of the same aisle it entered. Drive-thru racking operates on a FIFO basis, requiring sufficient floor space and turning clearance at both ends of the system.
