Views: 0 Author: Site Editor Publish Time: 2026-10-23 Origin: Site
Warehouse expansion and facility optimization require precise capital expenditure forecasting, yet initial racking quotes frequently obscure the total financial commitment. Facility managers often receive baseline material estimates that fail to account for the complex realities of warehouse integration. This disconnect creates a dangerous financial blind spot.
Miscalculating the true cost of an industrial storage system leads to severe budget overruns, delayed facility launches, compromised safety compliance, and operational bottlenecks. When procurement focuses solely on the raw cost of steel, elements like engineering, freight, and municipal compliance are left unfunded. This forces project managers to cut corners or halt installation entirely while securing additional capital.
This guide deconstructs exact expenditure models, exposes hidden installation and compliance fees, and provides a structural framework for evaluating racking investments based on operational reality rather than baseline material estimates. You will learn how to accurately forecast the complete capital requirement for your next warehouse optimization project.
Baseline Metrics: Material costs for standard single-deep selective systems represent only a fraction of the total expenditure, with fully installed costs scaling significantly higher based on facility variables.
System Density Impact: Specialized, high-density systems (like double-deep, drive-in, or pallet flow) increase baseline material requirements due to engineering complexity and specialized component manufacturing.
The Hidden Multipliers: Variables such as seismic engineering, local permitting, freight, essential safety accessories, and professional installation routinely increase baseline material estimates by substantial margins.
Lifecycle Value over Capex: Evaluating heavy duty systems requires balancing upfront capital expenditure against long-term durability, forklift damage resistance, and facility throughput requirements.
Evaluating warehouse storage investments requires a standardized metric. Cost per pallet position serves as the industry-standard evaluation lens for comparing different storage systems and vendor quotes. This metric divides the total project cost by the number of usable pallet storage locations the system provides. Using this formula allows facility managers to compare a high-density drive-in system directly against a standard selective layout, normalizing the data regardless of the warehouse footprint or vertical height.
A clear distinction exists between the raw material cost and the total installed cost. The material cost simply covers the raw steel components—the upright frames, load beams, and basic connectors. However, a functional warehouse requires a fully realized system. The total installed cost encompasses the steel, wire decking, concrete anchors, leveling shims, freight logistics, structural engineering stamps, municipal permits, and the specialized labor required to erect the structure safely. Relying solely on material costs guarantees a budget shortfall.
Bay configuration dynamics heavily influence the per-position expenditure. A standard starter bay requires two upright frames, while add-on bays only require one, sharing a common upright with the previous bay. Therefore, longer continuous rows reduce the average cost per bay. Vertical utilization also alters the math. Taller uprights require more steel upfront, but if the building clearance allows for five beam levels instead of three, the cost of the upright frame is amortized across significantly more pallet positions, driving down the overall cost per position.
To accurately evaluate vendor proposals, project managers should follow a standardized evaluation sequence:
Isolate the raw material costs from the freight and logistics estimates.
Identify all included safety accessories, such as wire decking and column guards.
Verify whether structural engineering stamps and seismic calculations are included in the baseline quote.
Confirm if the installation labor rate accounts for active facility conditions or assumes an empty building.
Divide the fully loaded total by the exact number of usable pallet positions to find the true comparative metric.
Storage System Type | Storage Density | Engineering Complexity | Relative Material Requirement |
|---|---|---|---|
Single-Deep Selective | Low | Standard | Baseline |
Double-Deep Reach | Medium | Moderate | Moderate Increase |
Drive-In / Drive-Thru | High | High | Significant Increase |
Pallet Flow / Push-Back | Very High | Very High | Maximum Increase |

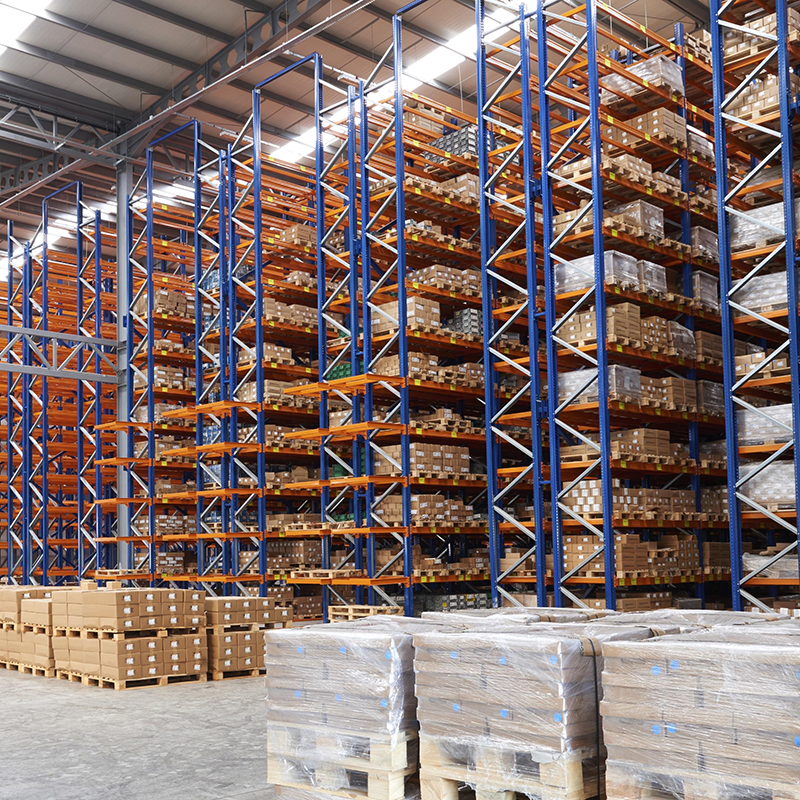

Standard selective pallet racking represents the most common and cost-effective solution for facilities requiring immediate access to every stored unit. Because it utilizes standard roll-formed steel components without complex moving parts, the baseline material expenditure remains the lowest among all storage types. This configuration is ideal for fast-moving consumer goods, distribution centers with high SKU counts, and operations where rapid inventory turnover is prioritized over maximum storage density. The simplicity of the design also accelerates manufacturing lead times and reduces installation labor.
Roll-formed steel is manufactured by feeding flat coils of cold steel through a series of rollers to create the desired shape. This process is highly efficient and produces lightweight, strong components. However, because the steel is relatively thin, it is more susceptible to forklift damage compared to heavier alternatives. Facilities utilizing roll-formed selective systems must invest heavily in column protectors and end-of-aisle guards to defend the vulnerable uprights from daily material handling equipment traffic.
When warehouse square footage is limited, operations often transition to high-density configurations like double-deep, push-back, drive-in, or pallet flow systems. These solutions drastically reduce the number of forklift aisles required, maximizing the cubic footprint of the building. However, the engineering complexity increases the baseline material cost. Push-back systems require nested carts and inclined rails, while pallet flow systems rely on heavy-duty polycarbonate wheels and speed controllers.
You must analyze the trade-off between higher upfront capital requirements and the long-term operational value of storing more inventory within the same real estate footprint. Drive-in systems, for example, require specialized overhead bracing and heavy-duty baseplates to maintain structural rigidity without the benefit of standard horizontal load beams. This specialized engineering requires thicker steel gauges and more complex manufacturing processes, driving up the initial material quote.
Environments subjected to harsh conditions or relentless forklift traffic demand robust solutions. Standard roll-formed steel, while highly efficient, can buckle under severe impacts. Utilizing heavy duty pallet racking manufactured from hot-rolled structural C-channel steel provides superior impact resistance. While structural steel carries a premium material cost, it is an absolute necessity in cold storage facilities, beverage distribution, and heavy manufacturing sectors.
The thicker steel profile withstands aggressive loading cycles, drastically reducing maintenance expenses and preventing catastrophic rack failures over the system's lifespan. Structural systems utilize bolted connections rather than the teardrop punch-hole designs found in roll-formed racks. These bolted connections provide immense rigidity and shear strength, making them ideal for facilities handling oversized loads, heavy machinery parts, or dense liquid containers. The installation process takes slightly longer due to the manual bolting required, which marginally increases the labor expenditure.
Modern fulfillment centers increasingly adopt Automated Storage and Retrieval Systems (AS/RS) and semi-automated pallet shuttles. These systems represent a massive leap in capital expenditure. The infrastructure requires ultra-precise manufacturing tolerances, integrated software controls, and motorized shuttles that navigate the storage lanes independently. The steel structures supporting these automated components must be engineered to exact millimeter tolerances, as any deflection or settling can cause the robotic shuttles to jam.
Despite the significant upfront investment, these automated solutions deliver unparalleled long-term value by virtually eliminating forklift labor within the storage cube, drastically reducing product damage, and achieving the highest possible storage density. The cost analysis for AS/RS integration extends far beyond the steel itself, encompassing software licensing, electrical infrastructure upgrades, and specialized maintenance contracts.
Procuring pre-owned storage systems presents an attractive opportunity to reduce initial capital outlay. Liquidated warehouses frequently sell off their existing infrastructure, allowing buyers to acquire standard uprights and beams at a discount compared to newly manufactured steel. For non-critical storage areas or facilities with generous budget constraints, used materials can stretch the purchasing power. However, these upfront savings must be weighed against the hidden liabilities inherent in second-hand structural components.
When evaluating used equipment, buyers must physically inspect the inventory before purchase. Look for signs of metal fatigue, rust penetration, and unauthorized field modifications. Often, warehouse maintenance teams will weld broken braces or drill custom holes into uprights to mount equipment. These unauthorized modifications instantly void the structural integrity of the component and render it unsafe for heavy industrial use.
The hidden costs of used equipment often negate the initial discount. Used components rarely come with original engineering documentation or load capacity stamps. Municipalities and fire marshals typically require certified drawings before issuing high-pile storage permits. Hiring an independent structural engineer to inspect the used steel, calculate its capacity, and stamp the design adds significant unbudgeted expense.
Furthermore, used racks may harbor hidden structural fatigue, hairline fractures from previous forklift impacts, or missing safety pins. A load beam missing its factory-installed safety clip can easily be dislodged by a forklift operator, leading to a catastrophic collapse. Replacing missing hardware, sourcing compatible wire decking, and paying for independent engineering certifications quickly erodes the financial benefits of buying used.
Evaluation Factor | New Equipment | Used Equipment |
|---|---|---|
Initial Material Cost | Standard Market Rate | Discounted |
Engineering Documentation | Included from Manufacturer | Requires Independent Engineer |
Manufacturer Warranty | Fully Covered | Void / Non-Existent |
Component Compatibility | Guaranteed Match | Mixed Brands / Obsolete Profiles |
Permitting Process | Streamlined | High Risk of Rejection |
Baseline vendor quotes frequently omit critical safety components to present a lower initial number. However, modern warehouse compliance mandates specific safety integrations. Wire decking is essential to prevent split pallets or loose boxes from falling through the beam levels. Column protectors must be anchored at the base of every upright to defend against outrigger strikes. End-of-aisle guards are necessary to stop sweeping damage from turning forklifts.
Safety netting or rigid steel panels are required where racks back up to pedestrian walkways or active work zones. Row spacers must be installed between back-to-back rows to maintain perfect alignment and ensure the required flue spaces remain open for fire suppression. These essential accessories significantly increase the final per-position expenditure but are non-negotiable for maintaining a safe, compliant facility.
The existing building infrastructure dictates the limits of your storage design. Standard pallet racking concentrates immense weight onto very small baseplates. A standard warehouse floor slab must possess adequate thickness and compressive strength to support these point loads without cracking. If the existing concrete is too thin, or the soil bearing pressure beneath the slab is inadequate, the project will trigger expensive concrete reinforcement requirements.
Engineers may mandate cutting the slab and pouring continuous concrete footings beneath the upright rows, adding massive delays and construction costs. Before finalizing any storage design, facility managers must obtain the original building blueprints or hire a firm to perform concrete core testing. Understanding the exact PSI rating and slab thickness prevents catastrophic structural failures and unexpected construction bills during the installation phase.
Geographic location plays a pivotal role in structural design and material requirements. Facilities located in highly active seismic zones must adhere to stringent building codes. To resist lateral seismic forces, the system requires thicker steel gauges, oversized footplates, heavy-duty anchor bolts, and specific moment-resisting beam connections.
The engineering calculations required to prove seismic compliance are rigorous and time-consuming. These geographic mandates ensure the structure remains standing during an earthquake but substantially increase both the material and engineering costs. In severe seismic zones, engineers may require specialized base isolation systems or heavy-duty overhead cross-bracing, further adding to the total project expenditure.
Steel is exceptionally heavy and bulky, making freight a major cost center that is often underestimated during initial budgeting. Shipping multiple flatbed trailers of uprights and beams across the country adds a massive logistical expense to the project. Furthermore, global steel market volatility impacts forward-looking budget forecasts.
A quote provided in the first quarter may be completely invalid by the third quarter due to fluctuations in raw material tariffs, energy costs, and supply chain disruptions. Securing fixed freight rates and understanding the expiration dates of material quotes are critical procurement strategies. Project managers should always request freight estimates as a separate line item to accurately compare bids from local versus national manufacturers.
Erecting industrial storage systems requires specialized, insured installation crews. Labor rates vary drastically based on geographic location, union versus non-union requirements, and project complexity. Installing standard selective frames in an empty warehouse is straightforward. However, integrating a multi-level pick module or a dense drive-in system requires laser leveling, precise shimming, and specialized lifting equipment.
Working around active warehouse operations, navigating narrow aisles, or installing at extreme heights slows down the crew, directly increasing the total labor bill. Scissor lift rentals, forklift rentals for the installation crew, and daily per diem rates for traveling installers must all be factored into the final budget. Delays caused by unlevel floors or missing components will result in costly change orders and extended labor billing.
Fire safety compliance is a non-negotiable expense. Local fire marshals strictly enforce high-pile storage regulations. Depending on the commodity classification of the stored goods, the facility may require in-rack fire suppression systems. Integrating ESFR sprinkler lines directly through the storage bays requires specialized plumbing contractors.
The design must maintain strict longitudinal and transverse flue spaces—clear gaps between the back-to-back racks—to allow heat to rise and sprinkler water to penetrate the lower levels. If the storage design blocks these flue spaces, the fire marshal will fail the inspection, forcing the facility to tear down and reconfigure the entire system. Budgeting for fire code compliance upfront prevents massive rework expenses.
Municipal permitting is a complex administrative hurdle that carries its own set of fees. Before any steel is anchored to the floor, the facility must submit stamped engineering drawings, egress plans, and seismic calculations to the city planning department. The municipality charges fees based on the total valuation of the project.
If the review process stalls, facilities often pay premium expediting fees to prevent launch delays. Failing to secure the proper permits before installation can result in stop-work orders and massive fines. Turnkey integrators often handle the permitting process on behalf of the facility, but the administrative fees and engineering costs are always passed down to the final invoice.
Scope creep destroys capital budgets. Mid-installation redesigns occur when the initial CAD layouts fail to account for building anomalies like low-hanging HVAC ducts, electrical panels, or uneven floor slopes. To prevent costly change orders, lock in highly accurate, field-verified CAD designs early in the process.
Ensure the layout accounts for exact forklift turning radiuses and emergency egress routes. Every time a crew has to un-anchor a row and move it six inches to accommodate a building column, the labor costs compound. Conducting a thorough site survey with laser measuring tools before ordering any steel is the most effective way to mitigate layout-related scope creep.
Not all vendors possess the capability to execute complex integrations. Establish strict criteria for evaluating industrial pallet racking providers. Prioritize turnkey integrators who offer in-house engineering, transparent freight quoting, and dedicated project management.
A vendor who simply drops off bundles of steel and leaves the installation up to you introduces massive operational risk. Look for partners who include essential safety accessories in their baseline quotes and take responsibility for securing municipal permits and coordinating with fire marshals. Thoroughly vet the vendor's insurance policies and request references from similar-sized integration projects.
Upgrading storage infrastructure in an active, revenue-generating facility requires meticulous planning. Shutting down the entire warehouse is rarely an option. Structure the installation in phases to minimize operational downtime. This involves clearing one zone, dismantling old equipment, installing the new infrastructure, and reloading the inventory before moving to the next zone.
While phased implementation extends the overall project timeline and slightly increases labor costs, it distributes the capital expenditure and ensures the business continues to fulfill customer orders without interruption. Clear communication between the installation crew and the warehouse shift managers is required to maintain safety boundaries and keep forklift traffic flowing smoothly around the active construction zones.
Audit your current warehouse dimensions and calculate your exact storage position requirements based on projected inventory growth and seasonal peaks.
Request comprehensive site surveys from certified integrators to identify potential floor slab limitations, HVAC obstructions, or building clearance issues.
Demand fully loaded quotes that explicitly separate raw materials, safety accessories, freight, engineering, and installation labor.
Secure high-pile storage permits and fire marshal approvals before authorizing any steel manufacturing or installation work.
Establish a phased implementation schedule to minimize operational downtime and maintain order fulfillment during the construction process.
A: The cost of a standard bay is calculated by combining the material expense of two upright frames, the required load beams, and necessary wire decking. Add-on bays cost less because they share an upright with the adjacent starter bay. The final calculation must also factor in the height of the frames, the weight capacity of the beams, and the required safety accessories.
A: Installation labor rates fluctuate based on project complexity, maximum rack height, and regional labor markets. Working in active facilities, integrating automated components, or requiring specialized lifting equipment for tall uprights increases the timeline. Union labor requirements in certain municipalities will also adjust the final installation expenditure.
A: Baseline quotes frequently exclude essential safety components to present a lower initial figure. Buyers must explicitly request the inclusion of wire decking, column protectors, end-of-aisle guards, and safety netting. Operating without these accessories violates modern safety standards and exposes the facility to severe damage risks.
A: Pre-owned systems offer upfront savings but carry significant risks. Used components often lack original engineering stamps, making high-pile permits difficult to obtain. Buyers frequently incur unexpected costs hiring independent engineers to certify load capacities, and hidden structural fatigue from previous use can compromise overall safety.
A: Facilities in active seismic zones require heavily reinforced structures to resist lateral earthquake forces. This necessitates thicker steel gauges, oversized baseplates, specialized moment-resisting connections, and rigorous engineering calculations. These mandatory structural upgrades significantly increase both the raw material and professional engineering costs.
A: Budgets are commonly disrupted by uncalculated freight logistics, municipal permitting fees, concrete core testing, and specialized equipment rentals like scissor lifts. Failing to budget for in-rack fire suppression systems or mandatory safety accessories will cause immediate budget shortfalls during the implementation phase.
