Views: 0 Author: Site Editor Publish Time: 2026-07-17 Origin: Site
High-density warehouse design constantly battles between maximizing cubic space utilization and maintaining realistic operational throughput. Arbitrarily selecting lane depth for high-density storage leads to severe operational bottlenecks. It increases wasted empty space, known as honeycombing, and elevates the risk of structural damage from forklift impacts. Facility managers must balance storage volume with material handling constraints to maintain efficiency.
Drive in Racking transforms storage from individual shelves into single continuous lanes without aisles between rows. This structural shift necessitates precise lane depth engineering. You cannot simply build as deep as the building allows. Every additional pallet position alters the retrieval dynamics and structural load distribution of the entire system.
Determining the optimal lane depth requires a technical evaluation framework. You must balance SKU velocity, equipment specifications, and facility constraints. Engineering a system based on actual production batch sizes and inventory rotation rules ensures the layout yields a positive operational return. The right depth configuration prevents gridlock and protects your structural investment.
Industry Standard Baselines: Most engineered systems fall between 5 and 10 pallets deep, with 6 to 8 pallets representing the optimal balance of density and accessibility for standard operations.
The SKU Velocity Dictate: Lane depth must be mathematically tied to batch sizes and SKU production runs; exceeding batch sizes creates severe honeycombing due to Last-In, First-Out (LIFO) retrieval rules.
Cold Storage Economics: In cold storage drive in racking environments, higher real estate costs often justify pushing lane depths to 10+ pallets, provided strict inventory control is maintained.
Structural and Equipment Limits: Pallet quality (deflection limits) and forklift mast dimensions are non-negotiable constraints that dictate maximum safe lane depth and rail spacing.
The Single-Dimension Constraint: Drive-in systems are engineered for exactly one specific pallet dimension (typically 40" wide); variation in pallet size within a deep lane introduces catastrophic structural risk.

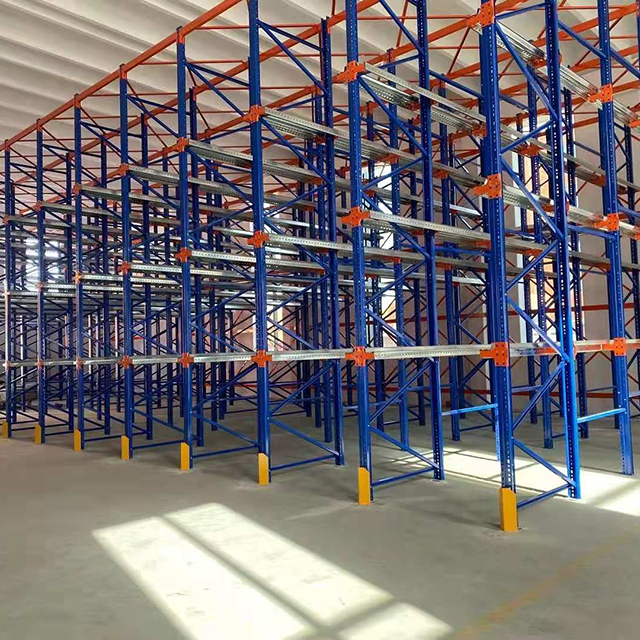

Drive-in systems replace traditional aisles and individual shelves with continuous structural rails. Instead of resting on front and back beams, pallets slide onto side rails that run the full depth of the lane. Eliminating aisles between rows drastically increases storage density. However, this design removes immediate accessibility to every pallet. Operators must retrieve the front pallet before accessing the ones behind it. Single-deep configurations offer total selectivity but poor density. Multi-deep drive-in lanes maximize floor space by sacrificing direct access, requiring strict inventory management.
When evaluating the shift from selective racking to continuous lanes, warehouse operators must understand the fundamental changes in load distribution. In a standard selective rack, the weight of each pallet transfers directly to the upright columns through the horizontal beams. In a continuous lane setup, the side rails carry the load along the entire depth of the system, transferring weight to the uprights at specific connection points. This continuous rail design means that any structural compromise at the front of the lane can affect the stability of the pallets stored deeper inside.
System Type | Average Depth | Density Profile | Accessibility | Best Use Case |
|---|---|---|---|---|
Selective Racking | 1 Pallet | Low | 100% Direct Access | High SKU count, low volume per SKU |
Double-Deep | 2 Pallets | Moderate | 50% Direct Access | Medium SKU count, moderate volume |
Standard Drive-In | 6 to 8 Pallets | High | LIFO (Front Pallet Only) | Low SKU count, high batch production |
Ultra-Deep Drive-In | 10+ Pallets | Very High | LIFO (Front Pallet Only) | Bulk cold storage, seasonal goods |
Engineers frequently design systems to be 6 to 8 pallets deep. This range represents the most common configuration for balancing space utilization and operational efficiency. It minimizes the number of access aisles required while keeping forklift travel times within acceptable limits. Operators can load and unload these lanes quickly without spending excessive time navigating deep within the rack structure. This depth matches typical manufacturing batch sizes, ensuring lanes remain full and productive.
To determine if the 6 to 8 pallet depth is right for your facility, follow these evaluation steps:
Analyze your average production batch size or inbound container volume for your top 20% fastest-moving SKUs.
Divide that batch size by the proposed lane depth to ensure it results in a whole number (e.g., a 24-pallet batch fits perfectly into three 8-deep lanes).
Measure the maximum travel distance your forklifts can cover within a shift without causing operator fatigue.
Calculate the clearance required for your specific forklift masts to safely enter and exit an 8-deep structure.
Shallow lanes serve facilities transitioning from double-deep layouts. These operations often handle higher SKU counts but lower volumes per SKU. A 2 to 5 pallet depth provides a density upgrade over selective rack without committing to massive single-SKU lanes. The operational speed remains high because forklifts barely enter the structure. The trade-off is a lower overall density compared to standard drive-in setups, as more aisles are still required to access the various shallow lanes.
In practice, a 4-deep lane is highly effective for distribution centers that receive goods in smaller quantities but still need to maximize floor space. Operators can clear a 4-deep lane rapidly, reducing the risk of inventory stagnation. This configuration also minimizes the structural stress on the racking system, as the total weight load per lane is significantly lower than in deeper setups.
Ultra-deep lanes ranging from 10 to 15 pallets are viable in highly specific scenarios. Seasonal storage and massive single-SKU production runs justify this extreme density. However, operational risk increases exponentially as lanes exceed 10 pallets. Forklift travel time inside the rack becomes a major bottleneck. Operators must drive long distances within tight tolerances, increasing the likelihood of upright impacts. Such depths require flawless inventory rotation and highly skilled equipment operators.
When engineering lanes deeper than 10 pallets, facility managers must account for the compounding risk of operator error. A minor steering deviation at pallet position 2 can result in a severe collision by pallet position 12. The physical strain on the forklift operator, who must maintain intense focus while reversing out of a 15-deep lane, cannot be ignored. These systems demand specialized training and strict adherence to safety protocols.
Last-In, First-Out (LIFO) inventory management strictly limits lane depth. You cannot mix different SKUs in the same lane without burying product. Lane capacity should ideally match or be a clean fraction of standard production batch sizes or inbound container loads. If a batch produces 24 pallets, a 6-deep or 8-deep lane works perfectly. Expiration dates and lot control further restrict depth. You must clear the entire lane before loading a new lot to prevent inventory stagnation and spoilage.
Consider a beverage distributor handling pallets of bottled water. If they receive shipments in 20-pallet increments, a 10-deep lane allows them to store exactly two shipments per lane. If they used a 7-deep lane, they would fill two lanes and leave 6 pallets in a third lane, creating immediate inefficiency. The mathematical relationship between inbound volume and lane depth is the most critical factor in system design.
Honeycombing occurs when lanes are partially empty but cannot be filled with different SKUs. This wastes valuable space. True space utilization drops mathematically as lane depth increases without corresponding single-SKU volume. A 10-deep lane holding only 4 pallets operates at 40% utilization. If a facility cannot consistently keep a lane at least 75% full, the lane is engineered too deep. Matching lane depth to actual inventory levels prevents this severe efficiency loss.
Lane Depth | Pallets Stored (Single SKU) | Empty Positions | Utilization Rate | Honeycombing Impact |
|---|---|---|---|---|
5-Deep | 4 | 1 | 80% | Low |
8-Deep | 5 | 3 | 62.5% | Moderate |
12-Deep | 6 | 6 | 50% | Severe |
15-Deep | 7 | 8 | 46.6% | Critical |
To combat honeycombing, warehouse managers must conduct regular inventory audits. If specific lanes consistently show utilization rates below 60%, the facility is losing money on wasted space. In these cases, reconfiguring the rack to shallower depths or consolidating SKUs is necessary to restore operational efficiency.
Freezer and cooler environments carry premium cubic footprint costs. These unique economics force facility managers to maximize every inch of space. cold storage drive in racking often pushes lane depths to the maximum engineering limits of 10 or more pallets. The high cost of refrigerated real estate justifies the operational challenges. Deep lanes in cold storage require specific engineering for airflow and temperature consistency. The structure also demands specialized galvanized steel to prevent rust in high-moisture environments.
In a sub-zero freezer, every square foot of empty space requires energy to keep cold. By filling the room with a 12-deep continuous lane system, the facility minimizes the volume of empty air, thereby improving the thermal efficiency of the refrigeration units. However, operators working in these extreme temperatures wear heavy protective gear, which limits their visibility and mobility. This makes navigating ultra-deep lanes even more hazardous, requiring wider clearances and highly visible floor guides.
Drive-in rails only support the pallet by its edges. This typically requires a standard 40-inch wide by 48-inch deep GMA pallet. Manufacturers engineer drive in pallet racking to fit exactly one rigid pallet size. Using inconsistent or damaged pallets in deep lanes poses an extreme risk. If a pallet is too narrow, it will slip off the rails. Pallet deflection, or sagging, is another critical factor. Inferior pallets will bow under heavy loads, potentially failing completely. Rack Manufacturers Institute (RMI) standards dictate rail design based on specific, verified pallet dimensions to ensure structural integrity.
When a pallet deflects beyond acceptable limits, it creates a downward force that can warp the support rails over time. In a 10-deep lane, a failed pallet at position 5 is nearly impossible to retrieve safely. Operators must unload the first four pallets, secure the broken pallet, and carefully extract it without causing further damage to the rails. This process halts operations and introduces severe safety hazards.
Forklift dimensions directly dictate drive-in bay clear openings. You must map the relationship between the overall width of the lift, the overhead guard height, and the rack entry point. Driving a forklift into a 10-deep lane presents a harsh operational reality. The deeper the lane, the higher the probability of upright impact. Operator fatigue and tight tolerances increase the risk of collisions. Specialized narrow-aisle equipment may be necessary for deeper configurations to maintain safe clearances and prevent structural damage.
Before finalizing your lane depth, verify the following equipment specifications:
Measure the exact width of the forklift chassis, including the tires, to ensure a minimum of 3 inches of clearance on either side within the lane.
Confirm the maximum height of the overhead guard to prevent collisions with the overhead tie beams.
Check the turning radius of the forklift to ensure it can safely enter the lane from the main access aisle without clipping the front uprights.
Evaluate the mast extension capabilities to ensure the operator can lift the pallet high enough to clear the support rails before reversing.
Lane depth heavily impacts the overall structural engineering of the rack system. Deep systems require overhead ties, heavy-duty bracing, and specialized anchoring. This is especially critical in seismically active zones where ground movement can destabilize continuous lanes. A fully loaded 10-deep system places compounding weight loads on the rear uprights. Engineers must calculate these dynamic loads precisely to prevent progressive collapse during seismic events or severe forklift impacts.
In regions with high seismic activity, building codes dictate stringent requirements for high-density storage. A 12-deep lane fully loaded with 2,500-pound pallets represents a massive concentration of mass. If an earthquake occurs, this mass will shift, exerting tremendous lateral force on the uprights. To counteract this, engineers incorporate heavy-duty seismic base plates, thicker column gauges, and extensive cross-bracing at the top and back of the structure.
SKU velocity sometimes demands First-In, First-Out (FIFO) rotation. When strict date-code rotation is required, deep drive-in racking becomes obsolete. In these scenarios, capping drive-in depth and transitioning to a pallet flow system makes operational sense. Pallet flow uses gravity rollers to feed pallets from the loading aisle to the picking aisle. While a 10-deep pallet flow system carries a higher initial cost-per-pallet position than a 10-deep drive-in system, it guarantees FIFO rotation and eliminates the need for forklifts to enter the rack.
Pallet flow systems excel in food and beverage operations where expiration dates dictate inventory movement. By separating the loading and unloading aisles, pallet flow allows for continuous operation without the bottleneck of a single access point. However, the mechanical complexity of the gravity rollers requires regular maintenance to ensure pallets do not get stuck mid-lane.
Facilities struggling with honeycombing in 6-deep drive-in lanes often pivot to 4-deep or 5-deep push-back racking. Push-back systems utilize nested carts on inclined rails. Forklifts push the front pallet back to load the next one. This offers a significant operational speed advantage because forklifts do not enter the rack structure. It provides a dense LIFO alternative that reduces travel time and impact risk, though it generally cannot match the extreme density of a 10-deep drive-in configuration.
The primary advantage of push-back racking is selectivity. Because each level operates independently, a facility can store a different SKU on each level of a single bay. In a drive-in system, the entire bay from floor to ceiling must typically hold the same SKU to prevent burying product. This makes push-back an excellent choice for operations with a growing number of SKUs that still require high-density storage.
Operators navigating deep, continuous lanes require strict training. Driving into a confined rack structure demands precision and focus. Facilities must implement rigorous certification programs for drive-in operators. Installing guide rails is a highly effective mitigation strategy. Floor-mounted or column-mounted guide rails keep the forklift centered within the lane. These physical barriers prevent steering drift and drastically reduce the risk of upright impacts in lanes deeper than 5 pallets.
Training programs should include practical exercises where operators practice entering, loading, and reversing out of the deepest lanes in the facility. Supervisors must monitor these exercises to ensure operators maintain a safe speed and do not rely on the rack structure to guide the forklift. Any operator found using the uprights as a bumper should face immediate retraining.
Deep systems mandate robust protection upgrades. Heavy-duty column protectors, reinforced baseplates, and continuous rub rails are essential components. You must establish a strict protocol for routine safety inspections. Damage deep within a lane is harder to spot but structurally critical. Inspectors must walk the internal lanes regularly to identify deflected rails, sheared bolts, or dented uprights. Proactive maintenance prevents minor impacts from escalating into catastrophic system failures.
Implement the following maintenance protocols for deep lane systems:
Conduct weekly visual inspections of all front uprights and baseplates for signs of forklift impact.
Perform monthly internal lane walks to check for deflected support rails and missing hardware.
Require operators to report any pallet overhang or sagging immediately.
Schedule annual comprehensive structural audits by a certified rack inspector.
Replace damaged components immediately; never attempt to weld or hammer bent uprights back into shape.
Audit your current SKU velocity and batch sizes to determine the mathematical maximum lane depth before honeycombing occurs.
Measure your existing forklift fleet, specifically chassis width and overhead guard height, to ensure compatibility with proposed lane clearances.
Inspect your pallet pool to verify that all pallets meet the strict 40-inch width requirement and deflection limits necessary for continuous rail support.
Consult with a structural engineer to calculate the seismic and dynamic load requirements for your specific geographic location and proposed lane depth.
Install heavy-duty column protectors and floor-mounted guide rails before allowing operators to load lanes deeper than 5 pallets.
A: Most engineered systems range from 5 to 10 pallets deep. The 6 to 8 pallet range is considered the sweet spot, balancing high storage density with manageable operational travel times and acceptable forklift access.
A: Yes, lanes can exceed 10 pallets, but this introduces significant operational risks. Ultra-deep lanes increase forklift transit times, elevate the risk of operator fatigue, and frequently lead to severe honeycombing if batch sizes do not match lane capacity.
A: Systems are engineered around a single, fixed pallet dimension, typically 40 inches wide by 48 inches deep. Because pallets are supported only by side rails, using mixed sizes or damaged pallets can cause them to fall through the structure.
A: Drive-in racking operates on a Last-In, First-Out (LIFO) basis with a single access aisle. Drive-thru racking requires entry aisles at both ends, allowing for First-In, First-Out (FIFO) loading and retrieval configurations.
A: Refrigerated real estate is extremely expensive to build and maintain. This high cost drives the need for maximum cubic density, pushing engineers to design 10+ deep configurations despite the inherent operational challenges.
A: You prevent honeycombing by mathematically matching your lane depth to exact production batch sizes or inbound container volumes. Ensuring lanes can be fully loaded and emptied at once minimizes wasted empty space.
A: Deep lanes require heavy-duty column protectors, floor-mounted guide rails to keep forklifts centered, overhead ties for structural stability, and strict adherence to using standard-compliant, high-quality pallets.
