Views: 0 Author: Site Editor Publish Time: 2026-07-28 Origin: Site
Storing long, awkward, or exceptionally heavy materials requires specialized infrastructure, but selecting the wrong rack configuration can severely bottleneck warehouse workflows and waste premium square footage. Facility managers and industrial engineers must balance maximum load capacities, forklift accessibility, and floor space utilization when designing layouts for a bulky item cantilever rack system. A technical evaluation of single-sided versus double-sided configurations determines the optimal structural setup based on operational workflows, inventory volume, and facility constraints. Making the correct choice upfront prevents costly retrofits, ensures material handling equipment can maneuver safely, and maximizes the vertical storage potential of your building. We will break down the engineering mechanics, layout implications, and operational realities of both configurations to help you specify the exact racking architecture your facility demands.
Single-sided configurations maximize facility perimeters and wall space, whereas double-sided configurations optimize center-aisle storage density and reduce the total number of required aisles.
Double-sided systems generally offer a lower cost-per-storage-position but mandate strict aisle clearances for dual-side material handling equipment (MHE) access.
Structural base design dictates modularity; while some single-sided units can be converted to double-sided, doing so requires verifying column capacity and base length compatibility.
High-density heavy duty cantilever racks introduce significant point loads, requiring rigorous floor slab capacity assessments and strict adherence to seismic anchoring standards.
Before selecting a rack orientation, you must establish strict baseline metrics for your inventory. This means documenting the maximum length, depth, and weight per bundle for every item you intend to store. Common materials like steel pipes, rough-sawn lumber, structural steel beams, or sheet metal all behave differently when suspended on rack arms. Deflection limits dictate arm capacity and column spacing requirements for a bulky item cantilever rack. If you place a 20-foot bundle of flexible PVC pipe on columns spaced 10 feet apart, the material will sag, potentially causing damage or creating a safety hazard. Conversely, rigid structural steel requires closer column spacing not because of sag, but to distribute the massive weight safely across multiple arms.
Storage profiles vary drastically by industry use cases. Fabrication shops often deal with high-mix, low-volume materials requiring frequent manual picking or specialized overhead crane access. Commercial lumber yards handle massive, uniform bunks of timber that demand rapid forklift access and high turnover rates. Pipe distribution centers require deep arms and specialized end-stops to prevent cylindrical items from rolling. Understanding these specific material behaviors is the first step in engineering a safe and efficient storage system.
Material Type | Typical Load Characteristics | Recommended Arm Style | Primary Handling Equipment |
|---|---|---|---|
Structural Steel Beams | Extremely heavy, rigid, long lengths (20ft+) | Heavy-duty straight arms with bolted connections | Multi-directional reach trucks, overhead cranes |
Dimensional Lumber | Moderate weight, uniform bunks, prone to moisture weight changes | Inclined arms to prevent forward shifting | Standard counterbalance forklifts |
PVC / Plastic Piping | Lightweight but highly flexible, prone to severe deflection | Straight arms with close column spacing (3-4ft) | Side-loaders, manual picking |
Sheet Metal / Plate | Heavy, wide, awkward to handle, sharp edges | Deep, heavy-duty arms with protective decking | Specialized sheet handling attachments |
Your building's physical architecture heavily restricts racking orientation. Existing building columns, dock door placements, and ceiling clear heights are hard constraints that dictate where racks can be placed. You cannot simply drop a rack line wherever it looks good on a floor plan. You must account for the turning radius of your forklifts, the location of pedestrian walkways, and the flow of inbound and outbound freight.
Throughput velocity determines how fast materials need to be picked and whether single-aisle access creates bottlenecks. In a high-throughput facility, having multiple forklifts operating in the same aisle can lead to congestion and accidents. Designing a layout that allows for one-way traffic or provides ample passing zones is critical. Furthermore, ceiling height dictates the maximum height of your columns, which in turn affects the base size required to stabilize the structure. A taller column requires a longer, heavier base to prevent overturning, especially in single-sided configurations.
Single-sided systems rely on a specific physical principle: the base length must counteract the overturning moment generated by the front-loaded weight. When you load thousands of pounds onto arms extending from one side of a column, the entire structure wants to tip forward. The base, which is bolted securely to the column and anchored to the concrete floor, acts as the counterweight. Standard manufacturing specifications dictate the structural steel columns used in these single-sided setups, ensuring the steel gauge and flange width can handle the eccentric stress.
The connection between the column and the base is the most critical stress point in a single-sided rack. Manufacturers use heavy-duty bolted connections or massive factory welds to ensure this joint does not fail under maximum load. The length of the base is typically equal to or slightly longer than the longest arm attached to the column. This ensures the center of gravity remains safely within the footprint of the rack, even when fully loaded at the top level.
Single-sided configurations excel at utilizing dead wall space and facility perimeters without obstructing central workflows. By pushing the racks flush against the walls of your warehouse, you open up the center of the floor for staging, processing, or active manufacturing. They fit tight physical footprints or environments with space limitations that can only accommodate a single aisle.
Target environments include smaller maintenance facilities, retail lumber yards, and specialized fabrication shops storing low-volume, highly specialized inventory. In these settings, the ability to store long items out of the way while maintaining easy access is more valuable than achieving maximum storage density. Single-sided racks also serve as excellent barriers or dividers within a large facility, separating different work zones while providing functional storage.
These systems offer lower overall storage capacity per square foot compared to dual-sided setups. Because you are only utilizing one side of the steel column, you are essentially paying for the structural support of a full column but only getting half the storage locations. Placing single-sided racks in open floor areas creates wasted back-side footprint and redundant aisles.
If you place two single-sided racks back-to-back in the middle of a room, you have effectively created a double-sided rack but paid for twice the amount of steel (two columns and two bases instead of one shared column and base). This is an inefficient use of capital and floor space. Single-sided racks should strictly be reserved for perimeters or specific single-aisle constraints.

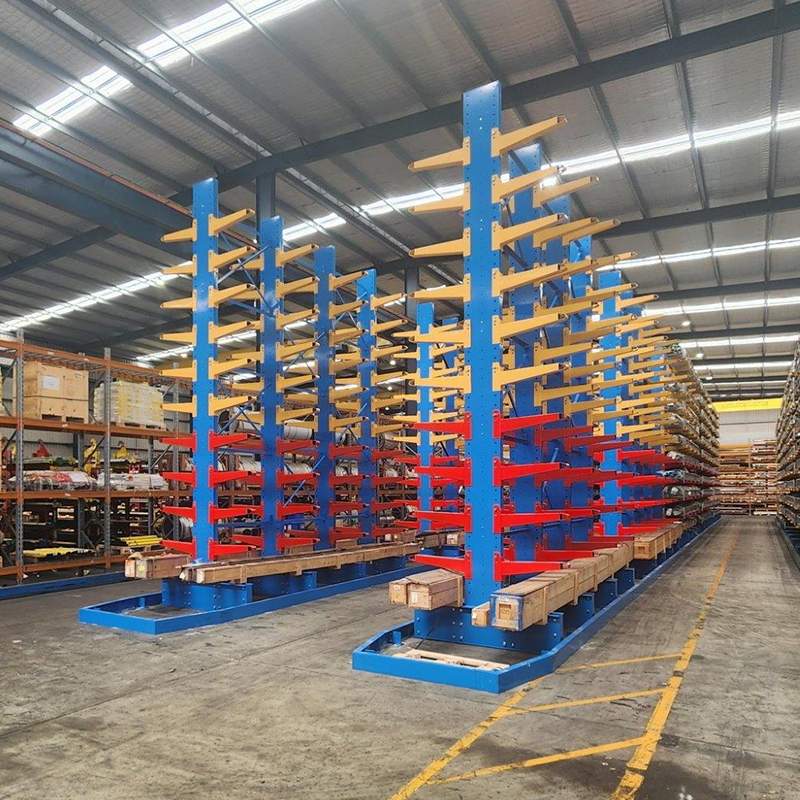

Double-sided systems utilize a centralized column with arms on both sides, creating a highly stable, self-balancing structure when loaded correctly. They provide significantly higher cumulative load capacities by neutralizing eccentric bending stresses on the central column. When you load both sides of the rack equally, the forces pulling the column forward and backward cancel each other out, directing the weight straight down into the floor slab.
Base requirements extend in both directions to prevent tipping during asymmetric loading and unloading. Even though the system is designed to be balanced, operational reality dictates that one side will often be loaded or unloaded before the other. The dual-directional base ensures the rack remains stable even if one side is completely empty while the other is fully loaded to its maximum rated capacity. This requires a substantial footprint, but the stability gained is unmatched.
These configurations create high-density storage aisles, allowing a single row of columns to service two picking aisles. Efficiency gains are notable for high-throughput environments storing massive volumes of uniform materials, such as high-volume lumber yards and industrial steel distributors. By sharing a central column, you maximize the amount of material you can store in a given square footage.
Double-sided racks are the workhorses of large-scale industrial storage. They allow for rapid loading and unloading from both sides simultaneously, provided the aisles are wide enough to accommodate multiple forklifts. This drastically reduces the time it takes to process inbound freight and fulfill outbound orders, directly impacting the operational efficiency of the facility.
Double-sided racks require open floor space and cannot be placed directly against walls. They demand wider, dual-access aisles to accommodate forklifts or side-loaders on both sides simultaneously. If your facility has narrow column spacing or low clear heights, fitting a massive double-sided system into the layout may be impossible without severely restricting traffic flow.
Furthermore, the sheer volume of material stored on a double-sided rack creates massive point loads on the concrete floor. You must ensure your slab is thick enough and has a high enough PSI rating to support the concentrated weight of the loaded columns. Failure to verify floor capacity can lead to slab cracking, rack settling, and catastrophic structural failure.
Double-sided racks yield more storage per linear foot of steel but require more navigable aisle space. When aisle space is restricted to a single path, single-sided racking acts as the default high-efficiency layout. Calculating optimal aisle widths depends on the turning radius of specific MHE, such as standard counterbalance or multi-directional reach trucks.
Measure the maximum length of the longest load you intend to store.
Determine the right-angle stacking aisle requirement of your specific forklift model.
Add a minimum of 12 to 18 inches of clearance on either side of the load for safe maneuvering.
Account for pedestrian walkways or secondary equipment traffic that may need to pass while a forklift is loading.
Calculate the total footprint including the rack base depth and the required aisle width.
Heavy duty cantilever racks handle stress differently based on configuration. Single-sided columns bear continuous eccentric loads, meaning the steel is constantly being pulled in one direction. Double-sided columns experience balanced or extreme unbalanced loads depending on inventory management. Structural steel provides superior capacities exceeding 1,500 lbs per arm compared to roll-formed steel, which is generally reserved for lighter applications.
Managing deflection is critical. Deflection is the amount an arm bends downward under load. While some deflection is normal and engineered into the system, excessive deflection indicates overloading and can lead to permanent deformation of the steel. Structural steel I-beams offer superior resistance to deflection, making them the mandatory choice for heavy industrial applications like storing solid steel bar stock or massive timber bunks.
The choice between single and double-sided configurations impacts forklift selection and routing. Traffic patterns in busy facilities, like fabrication shops with active machinery, increase the risk of MHE impact. Heavy-duty column guards are necessary in dual-access aisles where forklifts are constantly maneuvering close to the rack bases.
If you are using standard counterbalance forklifts, you will need extremely wide aisles to turn the load into the rack. If you invest in multi-directional reach trucks or side-loaders, you can drastically reduce your aisle widths, allowing you to fit more double-sided rack rows into the same footprint. The racking configuration and the MHE fleet must be designed together as a cohesive system.
Double-sided systems require less steel per storage location because they share a central column. This lowers the cost-per-position despite a higher initial unit cost for the heavier base and dual arms. When evaluating the layout, you must factor in the cost of your real estate. Maximizing vertical storage with double-sided racks in the center of your facility often provides the best return on investment for large-scale operations.
Single-sided racks, while requiring more steel per storage location, provide value by reclaiming otherwise unusable wall space. The efficiency comes from utilizing the perimeter, not from the raw density of the rack itself. Choosing the right mix of both configurations is usually the most effective strategy for a complex warehouse layout.
A common assumption is that you can simply add arms to the back of a single-sided rack later if you need more space. The engineering reality is much more complex. The base must be replaced or extended, and the column must be rated for the combined dual load. You cannot safely bolt arms to the back of a single-sided column if the base is not designed to prevent backward tipping.
If you anticipate future expansion, advise purchasing double-sided bases initially, even if you only install arms on one side for the time being. This allows you to easily convert the system to double-sided later without having to tear down the entire structure, replace the bases, and re-anchor everything to the floor. Planning for modularity saves significant labor and material costs down the road.
Fully loaded heavy duty cantilever racks generate extreme point loads, especially double-sided configurations. A single column supporting multiple levels of solid steel can transfer tens of thousands of pounds into a footprint of just a few square inches. Installation requires core drilling, concrete PSI verification, and heavy-duty wedge anchors.
You must consult with a structural engineer to verify that your concrete slab can handle these point loads. If the slab is too thin or the concrete is degraded, the rack columns can punch through the floor, leading to a catastrophic collapse. Proper anchoring is non-negotiable. Every column must be secured to the floor using the specific size and type of anchor bolts mandated by the rack manufacturer and local seismic codes.
Operational protocols for double-sided racks prevent severe unbalanced loading, such as unloading one side completely while the other remains at maximum capacity. While the racks are engineered to handle this, repeatedly subjecting the columns to extreme asymmetric stress can cause fatigue over time. Train your forklift operators to load and unload symmetrically whenever possible.
Mandatory safety signage, load plaques, and routine deflection inspections ensure safe operation. Load plaques must be clearly visible on every rack row, stating the maximum allowable weight per arm and per column. Conduct regular visual inspections to check for bent arms, damaged columns, loose anchor bolts, or signs of concrete cracking around the bases.
Execute the following steps to finalize your storage layout:
Measure your exact floor dimensions and map out all permanent building obstacles.
Document the maximum weight, length, and depth of your heaviest inventory bundles.
Determine the exact turning radius and aisle requirements of your current forklift fleet.
Consult a structural engineer to verify your concrete slab thickness and PSI rating.
A: Converting requires specific modular designs. Base and column capacity limitations dictate feasibility. The base must be replaced or extended, and the column must be rated for the combined dual load.
A: Structural steel capabilities often exceed 1,500 to 2,000+ lbs per arm depending on length and column spacing.
A: Yes, strict anchoring requirements are mandatory for safety, stability, and seismic compliance.
A: Aisle space depends entirely on the length of the load and the turning radius of the specific forklift used.
A: Common industrial applications include lumber, steel extrusions, PVC piping, sheet metal, and oversized fabrication materials.
A: Structural steel offers superior durability, impact resistance, and higher weight capacities compared to roll-formed steel.
A: When properly balanced and anchored, double-sided racking is exceptionally stable because symmetrical loads counteract one another. Single-sided racking is equally safe when engineered for eccentric loads and properly anchored to the slab.
