Maximizing Warehouse Space With Heavy Duty Cantilever Racks

Storing long, cumbersome, or irregular materials creates daily operational friction. Traditional floor-stacking methods turn warehouses into chaotic zones. Steel pipes, lumber, and heavy extrusions quickly consume valuable floor space. Relying on standard pallet uprights for oversized items inevitably results in dead space. You face frequent material damage, dangerous handling conditions, and severe workflow bottlenecks. Retrieving buried inventory slows down your entire fulfillment cycle.

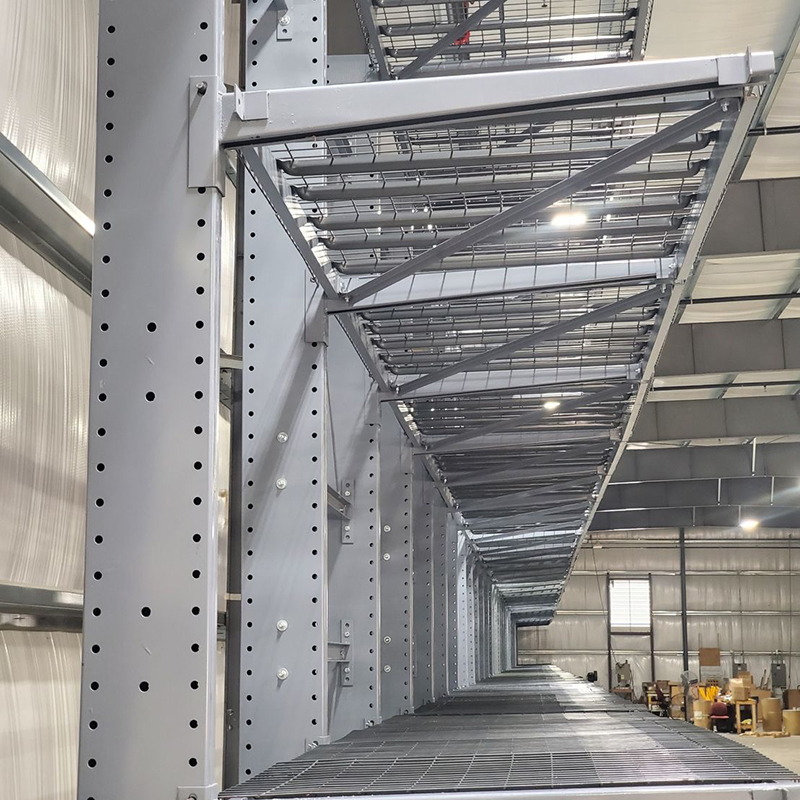

Heavy Duty Cantilever Racks act as a highly engineered infrastructure choice. They completely eliminate vertical structural obstructions inside your facility. You will learn how to maximize your profit per square meter safely. We will also show you how to delay or prevent costly building expansions altogether.

Key Takeaways

• Vertical Space Activation: Converts unused vertical air into accessible storage, drastically reducing the physical footprint of raw materials and long goods.

• Operational Velocity: Open-face design eliminates "double handling" and allows direct access for forklifts and overhead cranes.

• Engineering Compliance: Safe deployment requires strict adherence to base-to-arm ratio rules and load depth limitations.

Reclaiming Floor Space: The Financial Impact of Vertical Storage

The traditional "pile and stack" method acts as a massive operational liability. It creates heavily disorganized storage yards. You cannot maintain a FIFO (First-In, First-Out) inventory management system easily. When operators place newer items directly over older stock, retrieval becomes a nightmare. Workers waste countless hours digging out buried materials. This double handling severely damages fragile inventory.

Think of Cantilever Racks as an industrial library bookshelf. They perfectly translate horizontal floor clutter into organized, vertical tiers. Instead of spreading bulky items outward, you stack them upward into the air. This structural design grants your operators instant visual access. They can locate specific product batches immediately. You eliminate the endless shuffling of blocking materials.

Many operators mistakenly believe they need larger facilities to handle steady business growth. This assumption often leads to unnecessary real estate expenses. You can actually compress your existing inventory into a much smaller footprint. By shifting goods vertically, you absorb capacity increases effortlessly. You avoid leasing additional warehouse space entirely.

You should evaluate your new layout using precise operational metrics. First, track your improved profit per square meter. Measure the revenue generated against the square footage used. Second, measure the increased storage density within each aisle. These key performance indicators will quickly validate your structural investment. Your daily throughput speed will naturally increase. A clean, highly organized floorplan fundamentally changes how your team operates.

Structural Architecture: Engineering Rules for Heavy Loads

Safe deployment relies heavily on strict physical engineering principles. The structural base must always equal or exceed the length of the storage arms. This mandatory rule provides a safe counterbalance against extreme load weights. Without a proper base foundation, the entire vertical column risks catastrophic failure. Engineers design these bases to anchor securely into solid concrete.

You must respect crucial load depth limits at all times. The depth of your materials must never exceed the length of the shortest arm. If loads hang past the arm's front edge, they shift the system's center of gravity forward. This dangerous imbalance severely compromises structural integrity. It invites deadly tip-overs and threatens warehouse safety. Always train your operators to position loads flush against the rear column.

We strongly recommend choosing a configuration based on your specific traffic flow. Your daily operations dictate the best layout approach.

1. Single-Sided Layouts: Place these units securely against perimeter walls. They optimize the outer edges of your building. You can easily convert them to double-sided units if your floor layouts change later.

2. Double-Sided Layouts: Install these units in central warehouse zones. They offer simultaneous loading access from two separate aisles. This central placement maximizes forklift routing efficiency.

Heavy-duty variants tackle extreme industrial weights daily. Structural engineers design them specifically to support multi-ton loads. Standard systems frequently hold well over seven tonnes per upright column. This massive capacity makes them strictly industrial-grade solutions. Facilities handling solid steel bars, heavy timber, or thick aluminum extrusions rely entirely on this robust strength. Ensure you verify component yield strengths during the procurement phase.

Accelerating Retrieval and Integrating Material Handling Equipment

Standard pallet racks feature restrictive front vertical uprights. These steel beams block long items from entering the bays safely. Operators struggle to maneuver lengthy pipes into constrained slots. Conversely, cantilever designs offer a completely open storage face. You benefit immensely from a zero-obstruction advantage. Forklifts move laterally without navigating between tight steel posts.

You must align your new storage structures alongside the proper Material Handling Equipment (MHE). These open-face systems integrate flawlessly with specialized industrial vehicles. You can operate side-loader forklifts specifically for extremely long metal pipes. Multi-directional lift trucks maneuver easily through highly compacted, narrow aisles. Overhead cranes can drop heavy steel bundles directly onto the extended arms from above. This MHE compatibility ensures you never slow down your receiving docks.

Unobstructed lateral access immediately reduces manual handling requirements. Workers spend significantly less time navigating tight, dangerous spaces. They no longer waste effort moving secondary materials to reach buried inventory. This direct accessibility drives down your labor costs per pick dramatically. Faster retrieval directly means higher daily fulfillment throughput. Your workforce experiences less physical fatigue during demanding shifts.

Common mistakes occur when facilities pair standard counter-balance forklifts alongside extremely long loads. This mismatch creates wide, unsafe turning requirements. Investing in specialized side-loaders optimizes the true potential of your vertical storage. Heavy Duty Cantilever Racks transform chaotic yards into streamlined fulfillment hubs. Every single pick becomes a straightforward, single-step process.

Risk Mitigation, Compliance, and Durability

Safety remains the highest priority for any warehouse operator. You must adhere closely to recognized safety standards, including OSHA and ANSI regulations. Post accurate load ratings clearly on every single storage aisle. Maintain proper clearance zones for your daily equipment traffic. Monitor column deflections regularly to prevent dangerous metal fatigue. Compliance protects your workers and your inventory simultaneously.

You should deploy essential safety accessories to protect your warehouse workforce actively. We recommend installing the following components:

• End stops and Locking pins: These critical components prevent cylindrical items like steel tubing from rolling off the arm edges.

• Heavy-duty Guide rails: Install these rails directly along the concrete floor. They protect structural bases from destructive forklift strikes inside narrow setups.

• Column protectors: Shield the primary vertical supports from accidental impacts during busy shifts.

Warehouses operate under highly diverse environmental conditions. Surface treatments dictate your system's long-term longevity. For typical indoor climate-controlled use, standard industrial powder coatings suffice perfectly. For lumber yards and outdoor storage, you demand superior weather protection. Specify hot-dipped galvanized finishes or advanced weather-resistant coatings. These treatments actively prevent creeping rust and structural degradation caused by rain, snow, and humidity.

Ignoring routine rack inspections ranks among the most common warehouse mistakes. You should schedule monthly visual audits. Check all base anchors. Ensure every arm connection remains tight and secure. Replace any damaged components immediately. Proactive maintenance ensures your storage infrastructure survives decades of heavy abuse.

Procurement Framework: Is Cantilever Racking the Right Investment?

Selecting the correct storage medium defines your operational success. Use a clear decision matrix to evaluate your specific facility needs. If your materials fit cleanly onto standard wooden pallets, traditional racking is cheaper. If your materials vary in length or demand side-loading, open-face infrastructure becomes strictly necessary.

Before purchasing new systems, carefully assess your building's physical limits. You must verify your concrete floor slab strength. Does your floor hold the required PSI rating to support heavy point loads? Heavy duty uprights concentrate massive weight onto small baseplates. Next, measure your available aisle widths accurately. Ensure you own the appropriate equipment to navigate the specific turning radiuses demanded by your new layout.

Acknowledge the higher upfront financial commitment clearly. However, you must view this purchase through a long-term operational lens. You will experience far fewer damaged goods over time. You can consolidate your MHE equipment needs effectively. The robust structural durability heavily outlasts conventional, lighter storage methods. This strategic investment permanently solves your most complex material handling challenges.

Conclusion

Upgrading your facility storage is a highly strategic operational move. These engineered systems solve severe capacity limits caused by awkward, lengthy inventory. You reclaim wasted floor space rapidly. You accelerate your daily material retrieval operations. You drastically improve overall worker safety.

We strongly advise warehouse managers to conduct a formal site audit today. Analyze your concrete slab strength carefully. Measure your exact forklift turning radiuses. Determine your maximum load lengths accurately. Complete this essential evaluation before you issue a formal RFP or engage a structural storage engineer.

FAQ

Q: Can heavy duty cantilever racks be installed outdoors?

A: Yes, they function perfectly in outdoor environments. Outdoor applications require specialized surface treatments to survive harsh conditions. You must specify hot-dipped galvanized steel or heavy-duty powder coatings to withstand weather elements. Your concrete foundations must also account for strong wind shear and long-term soil stability.

Q: What are the weight limits of a heavy duty cantilever system?

A: Capacities vary widely based on your specific column size and arm gauge. These systems remain highly customizable. They frequently accommodate thousands of pounds per individual arm. Fully engineered setups easily hold multi-ton loads per column. Always refer directly to the manufacturer's official load chart before loading.

Q: How do I prevent materials from falling off cantilever arms?

A: You can secure materials using several proven physical methods. Install inclined arms that angle slightly upward toward the aisle. You can also attach securely welded or removable end stops. Heavy-duty locking pins provide another excellent barrier. These add-ons completely stop tubular or loose goods from rolling forward.
