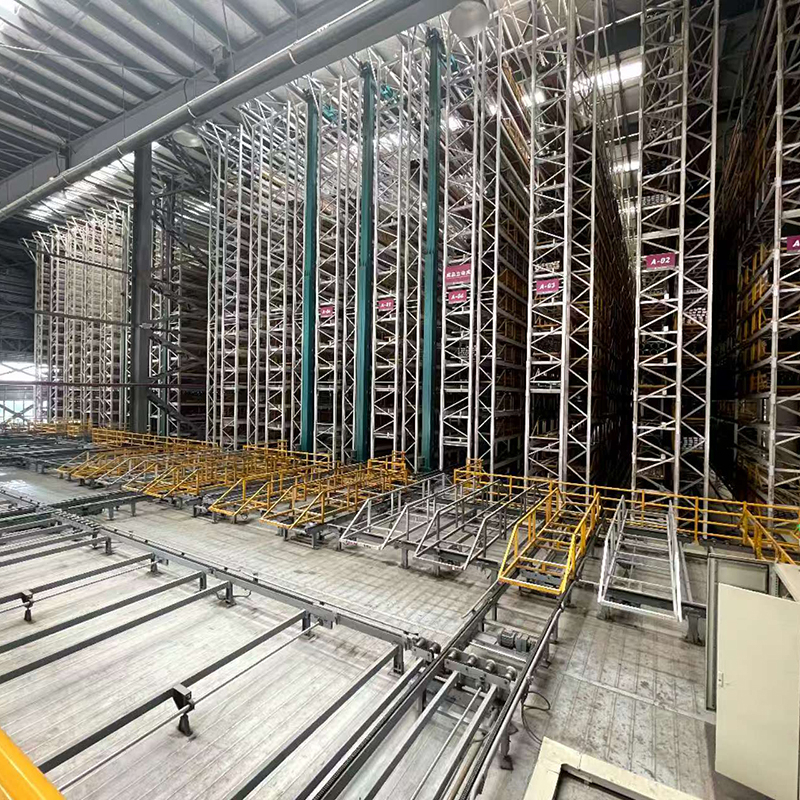

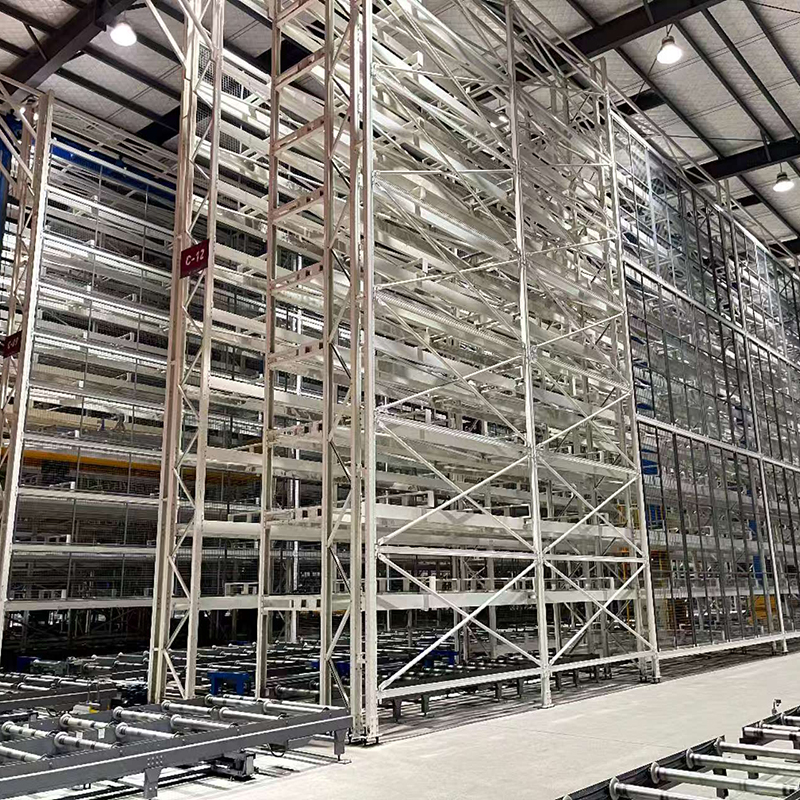

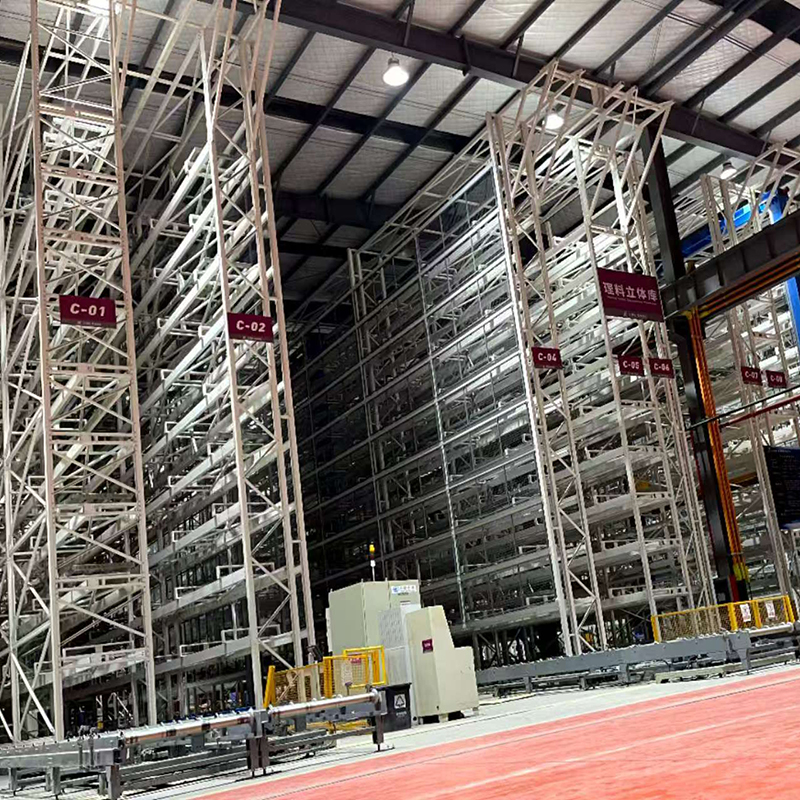

The Automated Cantilever Racking System is the perfect integration of modern intelligent warehousing technology and specialized storage equipment. It is specifically designed for the efficient storage and management of long-sized, irregularly shaped materials (such as metal pipes, profiles, timber, panels, and plastic components). By integrating rail-guided stacker cranes, it achieves automatic, precise, and highly efficient storage and retrieval operations.
| Quantity: | |
|---|---|
Automated Cantilever Racking is a cutting-edge intelligent storage system engineered specifically for high-density storage and management of long-sized, irregularly shaped materials. Developed by Nanjing Boracs Logistics Equipment Co., Ltd., this system integrates modern warehousing technology with specialized cantilever design, featuring rail-guided stacker cranes for fully automated storage and retrieval. Unlike traditional racking, its unique cantilever arm design eliminates front columns, providing unobstructed access to items such as metal pipes, profiles, timber, and panels. With 7x24 unmanned operation, it boosts efficiency by over 200% and increases space utilization by more than 40% compared to conventional beam racking. Compliant with FEM, DIN, and AS4084 standards, this automated storage solution is trusted by industries ranging from construction to metal fabrication.
Parameter | Specification |
Load Capacity per Arm | 500kg – 2000kg |
Suitable Material Length | 1.5m – 8m (longer lengths customizable) |
System Height | Typically ≤ 15 meters |
Automation Vehicle | Heavy-duty Rail-Guided Stacker Crane |
Control & Communication | Fully automatic (scheduled by WCS/WMS) |
Structural Material | Heavy-duty structural steel |
Cantilever Design | Reinforced for long-load stability |
Surface Treatment | Industrial-grade corrosion-resistant coating |
Compatible Systems | WMS, WCS, ERP |
Operation Mode | 7x24 unmanned operation |
Safety Features | Anti-collision sensors, emergency stop, overload protection |
The column-free cantilever design allows seamless handling of extra-long or irregularly shaped items. No structural barriers mean easy loading/unloading of pipes, timber, or profiles without damaging the material or racking.
Integrated heavy-duty stacker cranes replace manual forklift work, enabling round-the-clock unmanned operation. This eliminates labor constraints and human error, ensuring consistent workflow efficiency.
Constructed from high-grade structural steel, each cantilever arm supports 500kg–2000kg—ideal for heavy long materials like steel beams or thick-walled pipes. Reinforced columns and arms ensure long-term structural integrity.
Seamlessly integrated with Warehouse Management Systems (WMS), the system provides real-time tracking of each item’s location, specifications, and quantity. It enables automatic cycle counting, FIFO (First-In-First-Out) management, and end-to-end traceability.
By utilizing vertical space (up to 15 meters) and eliminating wasted aisle space. Automated Cantilever Racking increases storage density by over 40%.
Automated operations eliminate manual handling risks, such as lifting injuries or material damage. Multiple safety protections (e.g., anti-collision sensors, emergency stops) ensure a secure working environment.
Compatible with WCS (Warehouse Control System) and existing ERP systems, the racking integrates smoothly into your existing workflow. It supports data sharing and automated order fulfillment for streamlined operations.
Stores construction essentials like steel pipes, aluminum profiles, and wooden beams. The automated retrieval speeds up on-site material supply, reducing project delays.
Ideal for storing steel sheets, metal bars, and custom profiles. The high load capacity supports heavy metal materials, while intelligent tracking simplifies batch management.
Safely stores long timber planks, plywood, and lumber without warping or damage. The unobstructed access and gentle handling preserve material quality.
Stores plastic pipes, extruded profiles, and chemical storage panels. The corrosion-resistant coating and enclosed design protect sensitive materials from environmental factors.
Accommodates large panels (e.g., drywall, glass panels, composite sheets) with stable cantilever support. Automated handling prevents scratches or breakage during storage/retrieval.
Stores large-diameter pipes, culverts, and structural components for infrastructure projects. The high space efficiency keeps project materials organized and accessible.
Standard models support materials up to 8 meters, but we offer custom designs for longer items (contact our team for specific requirements).
The system is fully automated—simply input orders into the WMS, and the stacker crane will retrieve and deliver items to the picking workstation without manual intervention.
Yes—its cantilever design is specifically engineered for irregularly shaped items like curved pipes, custom profiles, or non-uniform timber.
You can expect a 40%+ increase in storage density, as the system utilizes vertical space and eliminates unnecessary aisles.
Routine inspections of stacker cranes and sensors (quarterly) and lubrication (semi-annually) are recommended. We provide scheduled maintenance services for optimal performance.
