Warehouse operators face a constant battle to maximize storage density without overcapitalizing on automation. Facility managers and supply chain directors often struggle to forecast accurate capital expenditures for high-density storage projects. Project expenses vary wildly based on the operating environment, specific load profiles, software integration demands, and local safety compliance mandates. The opacity of warehouse automation pricing creates significant friction during the initial planning phase. This guide breaks down the realistic cost factors of shuttle racking. We isolate the exact variables that drive the required investment up or down. You will get a clear framework for calculating a defensible return on investment. By understanding the underlying engineering and operational requirements, you can build an accurate budget, align your procurement strategy, and avoid expensive implementation surprises on the warehouse floor.
Baseline Estimates: Expect initial hardware and structural costs to range significantly per pallet position, heavily dependent on lane depth, total system scale, and geographic location.
The 80/20 Cost Split: The physical racking structure and the shuttles themselves typically account for the majority of the CapEx, but software integration (WMS/WCS), middleware development, and facility modifications represent critical, often-underestimated expenses.
Cold Storage Multipliers: Implementing a radio shuttle rack system in freezer or cold storage environments increases costs due to specialized batteries, heated components, and specialized steel requirements.
ROI Timeline & Financing: When replacing traditional drive-in racks, operations typically see a break-even point within 24 to 48 months through reduced forklift labor, minimized rack damage, and increased throughput. Alternative financing like Robotics-as-a-Service (RaaS) can further shift this from CapEx to OpEx.
The industry-standard metric for evaluating high-density storage is the cost per pallet position. This metric divides the total project capital by the number of active storage slots. Standard ambient environments establish the baseline index for this calculation. Economies of scale play a massive role in determining your final per-pallet expenditure. A facility designed for ten thousand pallets yields a significantly lower per-pallet cost than a smaller five-hundred-pallet layout.
Fixed engineering, project management, and software integration expenses remain relatively static regardless of system size. When you spread these fixed costs over a larger footprint, the efficiency of your capital improves. High-density configurations also reduce the required square footage per pallet, indirectly lowering your facility overhead. Mobilization costs for heavy equipment, such as scissor lifts and telehandlers, also dilute effectively across larger installations.

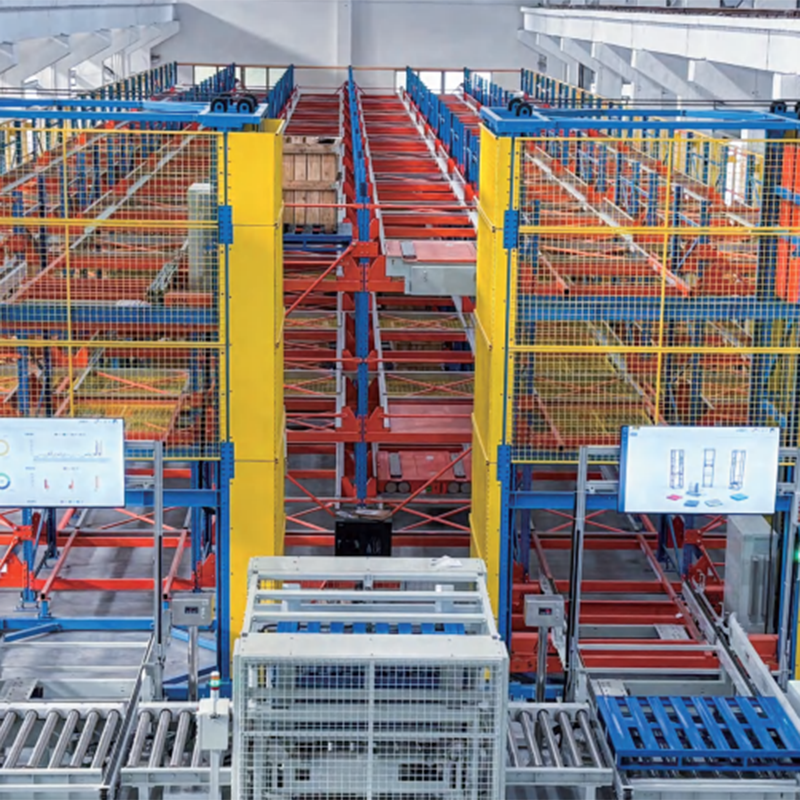

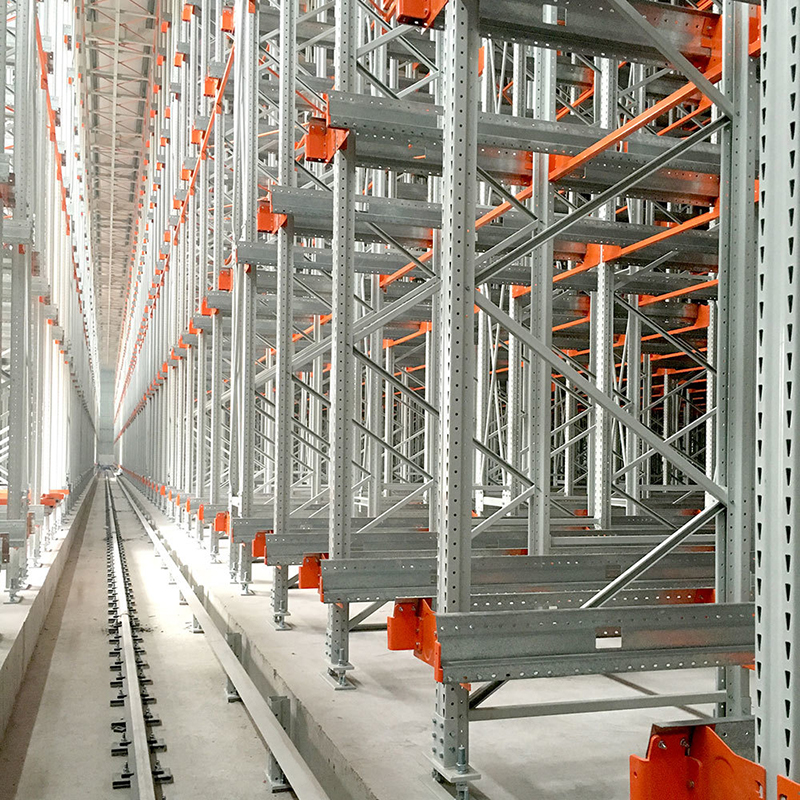

A typical project quote splits into distinct categories. The physical steel structure usually consumes the largest percentage of the budget. Uprights, rails, bracing, and safety accessories form the heavy infrastructure. Shuttle carts represent the next major hardware expense. Their financial impact depends heavily on weight capacity, speed requirements, and battery technology.
Software and integration often account for the final critical segment of the initial capital expenditure. The Warehouse Control System must communicate flawlessly with your existing management software. Custom API development, network upgrades, and server hosting contribute to this software allocation. Underestimating the software integration phase is a common budgeting error that leads to project delays.
System Component | Typical Budget Allocation | Primary Cost Drivers |
|---|---|---|
Steel Racking Structure | 45% - 55% | Steel gauge, seismic zone requirements, system height, lane depth |
Automated Shuttle Carts | 20% - 30% | Battery chemistry, sensor array complexity, maximum load capacity |
Software & Integration (WCS) | 10% - 15% | API complexity, legacy system integration, middleware licensing |
Installation & Commissioning | 10% - 15% | Union labor rates, phased installation requirements, site readiness |
Refurbished structures offer potential upfront savings. Used uprights and beams can reduce initial material expenses if they meet current seismic and structural codes. However, buying used shuttle carts introduces severe operational risks. Degraded battery life plummets throughput and requires immediate replacement. Lithium-ion batteries have a finite number of charge cycles; purchasing a cart near the end of its battery lifespan is a massive liability.
Outdated sensors compromise safety and increase the risk of pallet jams deep within the lanes. Lack of warranty protection leaves you vulnerable to sudden downtime and expensive emergency repairs. Furthermore, integration incompatibilities often erase any initial savings. Forcing legacy carts to communicate with modern warehouse software requires expensive custom patches and ongoing IT support.
Lane depth dictates the ratio of shuttles to steel. A system built twenty pallets deep requires fewer aisles than a five-deep configuration. This high-density approach maximizes floor space but alters the structural engineering requirements. Longer lanes mean shuttles travel further, potentially requiring a larger fleet with higher-capacity batteries to maintain the same throughput.
Vertical space utilization also drives structural costs. Taller systems demand heavier steel gauges and wider base plates to handle the increased load limits. The higher you build, the more rigorous the engineering tolerances become. Plumbness and rail alignment are critical at elevated heights to prevent shuttle derailment. Even a fraction of an inch of deflection at the base translates to significant misalignment thirty feet in the air.
Pallet quality directly impacts system design and overall expenditure. Non-standard or damaged pallets require customized shuttle sensors. Rail modifications become necessary to prevent jams and ensure smooth transit. Standardized, high-quality pallets allow for off-the-shelf sensor configurations. Pallet deflection limits are strict; if a heavily loaded pallet sags in the middle, it will strike the shuttle passing underneath.
Heavy loads like beverage or industrial manufacturing pallets demand reinforced steel profiles. Fast-Moving Consumer Goods typically allow for standard structural designs. Heavier loads also require higher-torque shuttle motors. Upgrading the motor capacity and structural integrity increases the hardware investment but ensures long-term reliability under constant strain.
Implementing a radio shuttle rack system in cold storage introduces premium multipliers. Freezer applications demand specialized engineering to prevent mechanical failure. Standard components degrade rapidly in sub-zero environments. Condensation becomes a major issue when shuttles move between deep freeze zones and ambient loading docks.
Lithium-ion or cold-rated batteries are mandatory to maintain charge cycles in freezing temperatures.
Electronics require conformal coating to prevent condensation damage on printed circuit boards.
Mechanical moving parts need low-temperature lubricants that will not solidify.
Galvanized steel is often necessary to prevent rust in high-humidity transition zones.
Heated sensor enclosures prevent frost buildup from blinding the optical scanners.
Entry-level shuttles handle basic deep-lane storage efficiently. They provide reliable movement for standard pallets in ambient conditions. Advanced models offer regenerative braking and rapid-charging capabilities. Advanced LiDAR and optical sensors improve positioning accuracy and obstacle detection. These high-end sensors can detect stray stretch wrap or broken wood splinters on the rails, stopping the cart before a jam occurs.
You face a core operational trade-off during procurement. You can purchase fewer, faster shuttles to hit your throughput targets. Alternatively, you can deploy more standard-speed shuttles to build redundancy into the system. High-performance carts require a larger upfront investment but often yield better long-term efficiency and require less manual intervention.
Seismic engineering introduces hidden compliance expenses. Local building codes dictate exact steel gauge requirements based on fault line proximity. Base plate sizes and anchoring depths scale with seismic zone ratings. You cannot bypass these structural mandates. In highly active seismic zones, engineers may require base isolation techniques or specialized diagonal bracing that significantly increases the steel tonnage.
Integrating OSHA-compliant safety features is also mandatory. Anti-fall mesh prevents pallet displacement into pedestrian areas. Safety fencing isolates automated zones from manual forklift traffic. Light curtains and dedicated pedestrian walkways ensure facility compliance and protect your workforce. Interlocking gates that automatically cut power to the shuttles when opened are standard requirements in modern facilities.
Charging stations require robust electrical infrastructure. You must install dedicated power drops at strategic locations throughout the facility. The electrical load increases proportionately with the size of the shuttle fleet. Upgrading your main electrical panel may be necessary to handle the simultaneous draw of multiple rapid-charging stations.
Battery maintenance and eventual replacement form a predictable operational expense. Proper charging protocols extend battery lifespan and protect your investment. Smart charging stations that balance the electrical draw can optimize power usage and reduce utility spikes. Operators must be trained to cycle the batteries correctly to prevent premature degradation.
Inadequate concrete floor slabs represent a massive implementation risk. High-density point loads require exceptional slab integrity. Standard warehouse floors often lack the necessary thickness or reinforcement to support deep-lane automation. The Floor Flatness and Floor Levelness ratings must meet strict tolerances to ensure the racking stands perfectly vertical.
Core testing determines the current weight-bearing capacity and thickness of the concrete.
Ground penetrating radar identifies underlying rebar patterns and potential voids in the subgrade.
Floor leveling grinding ensures the racking baseplates sit perfectly flush.
Epoxy injections may be required to repair existing micro-fractures before they spread under load.
In severe cases, complete slab replacement or localized trenching is necessary before installation begins.
Software connectivity carries hidden integration expenses. Custom API development bridges the gap between legacy management platforms and modern shuttle controls. Middleware licensing adds a recurring line item to the software budget. The handshake protocols between the software layers must be rigorously tested to prevent dropped commands.
Upgrading warehouse Wi-Fi networks is non-negotiable. Shuttles require zero-latency communication to operate safely and efficiently. Dead zones in the racking structure cause carts to stall, requiring manual intervention. Installing industrial-grade access points and directional antennas ensures continuous data transmission through dense steel and liquid-filled pallets.
Mechanical installation and electrical commissioning require specialized labor. The precision required for automated rails far exceeds the tolerances of standard static racking. Misaligned rails cause accelerated wheel wear and system faults. Installers must use laser levels and specialized jigs to ensure the track gauge remains perfectly consistent from the front of the lane to the back.
Phased installations keep part of your warehouse operational during construction. This approach minimizes business disruption but increases total labor hours due to repeated mobilization. Complete facility shutdowns allow for faster installation but halt revenue generation temporarily. You must weigh the cost of lost operational time against the increased labor rates of a phased build.
Post-implementation operational expenses require careful budgeting. Annual maintenance contracts keep the system optimized and prevent catastrophic breakdowns. Your internal maintenance team must also adapt to the new technology. They need specialized training to troubleshoot sensor faults and perform preventative maintenance on the carts.
Spare parts inventory must include polyurethane drive wheels, optical sensors, and backup batteries.
Software licensing fees recur annually for the control systems and middleware.
Training forklift operators to interact safely with the automated system is critical to prevent accidental impacts.
Routine rail inspections prevent debris buildup and ensure smooth transit.
Shuttle systems require a higher initial capital expenditure than traditional drive-in racks. However, the operational savings accumulate rapidly. Forklift travel time drops significantly because drivers remain at the aisle face. They no longer drive deep into the rack structure, which drastically increases the number of pallets moved per hour.
In-rack forklift damage virtually disappears. This eliminates the constant need for upright replacement and structural repairs. Space utilization improves dramatically by eliminating the honeycombing effects common in drive-in setups. Every lane can be filled to maximum capacity independently, whereas drive-in racks often sit partially empty due to Last-In-First-Out constraints.
A flexible intelligent automated shuttle racking system serves as a powerful middle-ground investment. It offers faster deployment than fully automated crane-based AS/RS. The structural requirements are less extreme, and the commissioning phase is shorter. Cranes often require purpose-built facilities with massive clear heights, whereas shuttles adapt well to existing conventional warehouses.
The initial capital requirement is substantially lower than a crane system. You maintain the flexibility to scale throughput dynamically. If volume increases, you simply add more shuttles to the existing grid. Crane systems are fixed in their throughput capacity once installed. If a crane goes down, the entire aisle is dead; if a shuttle goes down, you simply swap it out with a spare.
Calculate your return on investment using a structured framework. First, quantify labor rate savings from reduced forklift hours and smaller fleet requirements. Second, calculate the real estate cost per square foot saved through high-density storage. If you avoid leasing an overflow facility, factor that saved rent directly into the ROI.
Next, measure the financial impact of increased throughput. Faster loading and unloading times reduce detention fees at the dock. Finally, factor in the reduction of product damage and rack repair costs. Comparing these operational savings against the initial capital outlay reveals your break-even timeline, which typically falls between two and four years for high-volume operations.
Alternative procurement models shift the financial burden. Robotics-as-a-Service allows you to treat automation as an operational expense rather than a massive capital outlay. You pay for the throughput or the equipment usage on a recurring basis. This model includes maintenance and upgrades, removing the burden of obsolescence from your balance sheet.
Leasing models preserve capital for other core business initiatives. Automation tax incentives can accelerate your return on investment. Government deductions for capital equipment often offset a significant portion of the initial purchase, improving first-year cash flow. Consult with a capital equipment tax specialist to maximize depreciation benefits.
A detailed Request for Proposal prevents expensive change orders later in the project. Ambiguity in the RFP leads to inaccurate quoting and budget overruns. You must provide comprehensive operational data to prospective vendors. If vendors guess your load profiles, they will over-engineer the system to protect themselves, artificially inflating your quote.
Include exact SKU profiles, pallet dimensions, and maximum load weights.
Document your peak throughput requirements clearly, separating inbound and outbound velocity.
Provide comprehensive floor slab data and core testing results upfront.
Detail the exact environmental conditions, including temperature and humidity ranges.
Specify the exact make and version of your current warehouse management software.
Evaluate vendors on more than just the initial quote. The cheapest hardware often results in the highest long-term operational costs. Local spare parts availability prevents extended downtime during peak seasons. If a proprietary motor fails, waiting weeks for overseas shipping will cripple your operation.
Guaranteed response times in the Service Level Agreement are critical. Ensure the vendor has certified technicians within a reasonable radius of your facility. Demand verifiable case studies from facilities with similar operating environments and load profiles. A vendor who excels in ambient distribution might struggle with the complexities of a deep-freeze food and beverage installation.
Future-proof your investment during the initial negotiation. Lock in pricing for future shuttle additions to protect against inflation. Evaluate how easily the efficient automated shuttle radio rack can expand into adjacent aisles. The structural design should account for future bays without requiring a complete teardown of the existing end-rows.
Your system must grow seamlessly as your business volume increases. Ensure the software architecture can handle a larger fleet without requiring a complete system overhaul. Planning for expansion on day one prevents operational bottlenecks in year three. Ask vendors to demonstrate how their control software manages traffic when the shuttle fleet doubles in size.
The initial investment for automated high-density storage exceeds traditional static racking. However, the operational efficiency justifies the expenditure in high-volume, low-SKU environments. Cold storage facilities, third-party logistics providers, and operations in high-rent districts see the fastest returns. The reduction in forklift labor, minimized product damage, and maximized square footage create a compelling financial case.
Prioritize vendors who offer transparent breakdowns of hardware, software, and installation requirements. Avoid partners who provide generic quotes without conducting rigorous floor slab and pallet audits. Precision during the planning phase dictates the success of the implementation. A well-engineered system transforms your warehouse from a static storage box into a high-velocity fulfillment engine.
Initiate a comprehensive facility audit focusing on concrete slab integrity and floor flatness ratings.
Gather your historical throughput data and SKU velocity to determine exact fleet size requirements.
Request a preliminary structural engineering assessment to identify any seismic or local building code constraints.
Conduct a pallet quality audit to ensure your current inventory meets the deflection limits required for automated transit.
A: Pricing depends on weight capacity, travel speed, battery technology, and sensor complexity. Cold-storage models command a premium due to heated components and specialized lithium-ion batteries. Advanced models featuring regenerative braking and optical obstacle detection require a larger initial investment than basic deep-lane carts. Economies of scale also apply; ordering a larger fleet often reduces the per-unit expenditure.
A: Retrofitting is technically possible but rarely recommended. Drive-in racks often lack the strict engineering tolerances, plumbness, and specific rail profiles required for automated carts. Extensive structural modifications are usually necessary to prevent shuttle derailment. Building a new, purpose-built structure is almost always more reliable and cost-effective than attempting to modify legacy static racking.
A: Routine maintenance includes inspecting and replacing polyurethane drive wheels, cleaning optical sensors, and testing battery health. Technicians must check the motor brushes and lubricate moving mechanical parts according to the manufacturer schedule. The structural rails also require periodic sweeping to remove wood splinters or stretch wrap debris that could cause wheel damage or trigger false sensor faults.
A: Sub-zero temperatures degrade standard batteries and cause condensation on electronics when moving between temperature zones. Cold storage environments require specialized shuttles equipped with cold-rated batteries, conformal-coated circuit boards, and low-temperature lubricants. These modifications maintain consistent throughput, prevent mechanical freezing, and ensure the onboard computers do not short-circuit from moisture buildup.
A: Lead times vary based on system scale and vendor manufacturing capacity. Engineering, permitting, and manufacturing typically take several months. The physical installation and software commissioning phase depends heavily on site readiness. Phased integrations in an active facility take longer than installations executed during a complete facility shutdown.
A: Shuttles communicate via an industrial Wi-Fi network installed within the racking structure. The facility's primary management software sends task data to a dedicated control system, which acts as middleware. This control system then translates these broad tasks into exact, zero-latency movement commands for the individual shuttles navigating the rails.
