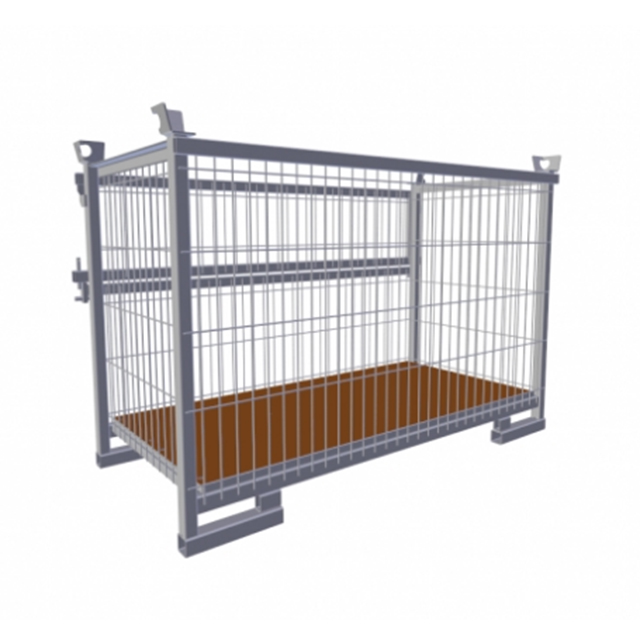

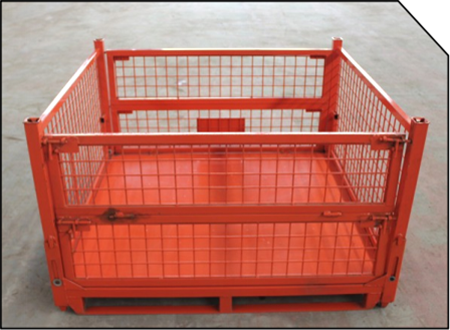

Steel Wire Mesh Box is a versatile and durable storage & transport solution designed for logistics, warehousing, and industrial applications. Crafted with high-quality steel wire, it features a robust grid structure that balances visibility, ventilation, and cargo protection.
| Quantity: | |
|---|---|

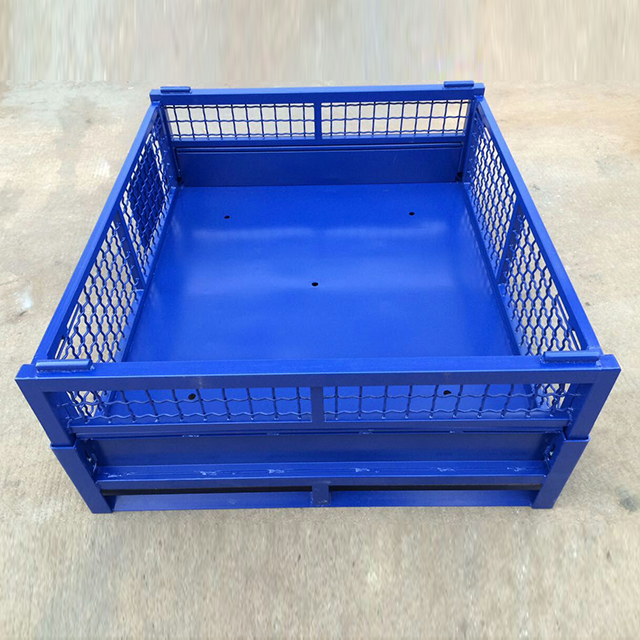

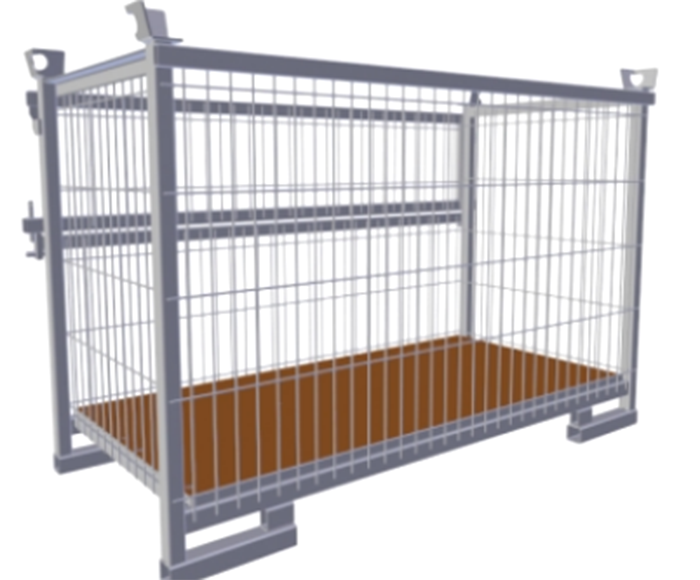

The Steel Wire Mesh Box is a versatile, durable storage and transport solution designed for logistics, warehousing, and industrial applications. Crafted with high-quality low-carbon steel wire, it features a robust grid structure that balances ventilation, visibility, and cargo protection—addressing the pain points of traditional closed containers. Whether for small parts sorting, bulk goods transport, or heavy-duty component storage, this Steel Wire Mesh Box offers flexibility, safety, and space-saving efficiency. With stackable design, optional foldable structure, and corrosion-resistant treatments, it adapts to diverse environments from e-commerce warehouses to chemical logistics.
The welded steel wire mesh panels provide full visibility of contents, enabling quick inventory checks without opening the box. The grid structure also ensures maximum ventilation, preventing moisture buildup and mold growth—ideal for perishables, textiles, or goods prone to dampness.
Made with low-carbon steel wire (Q235 grade, 4–6.2mm diameter), the mesh box features thickened wires at stress points, reinforced corners, and bottom cross beams. It supports load capacities from 800kg (Standard Type) to 1700kg (Heavy-Duty Type), withstanding impacts during transport and stacking.
Top/bottom positioning grooves enable stable stacking of 3–4 layers (standard types) or 3–4 layers (heavy-duty types), maximizing vertical storage space. Foldable models (available for Heavy-Duty and Lightweight types) reduce storage volume by up to 75% when empty, saving warehouse space.

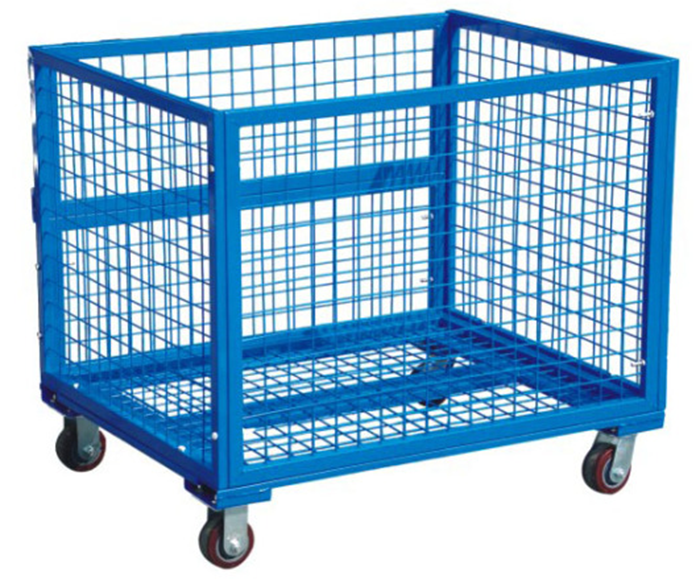

Equipped with 1–2 lockable flip doors (hinge-connected), the Steel Wire Mesh Box allows easy loading/unloading without disassembling the structure. Optional universal casters enable short-distance movement, eliminating the need for forklifts for light cargo.
All models support customization: adjust mesh size (50×50mm, 50×100mm, etc.), surface treatments (PVC coating for acid-alkali resistance), or dimensions to fit specific goods—from small parts to large industrial components.
| Model | External Dimensions (mm) | Folded Dimensions (mm) | Internal Dimensions (mm) | Wire Diameter (mm) | Mesh Size (mm) | Load Capacity (kg) | Net Weight of Box (kg) | Folded (if applicable indicated by "/") | Application Scenarios |
| Standard Type 1 | 800×600×640 | 800×600×160 | 760×560×500 | ~5.0 | 50×50 | 800 | 28 | No | Small parts storage, retail warehouse sorting |
| Standard Type 2 | 1000×800×850 | 1000×800×160 | 960×760×710 | ~5.0 | 50×50 | 1000 | 43.5 | No | General logistics transportation, ordinary factory warehousing |
| Standard Type 3 | 1000×800×850 | 1000×800×160 | 960×760×710 | ~4.8 | 50×100 | 800 | 40 | No | Lightweight bulk goods, packaging box storage |
| Heavy-Duty Type 1 | 1030×840×850 | / | 1000×810×800 | 6 | 50×50 | 1300 | ~48 | Yes | Heavy-duty mechanical parts, high-density material transportation |
| Heavy-Duty Type 2 | 1230×1040×890 | / | 1200×1010×840 | 6.2 | 50×50 | 1700 | ~65 | Yes | Large industrial components, warehouse heavy-load stacking |
| Large-Size Type | 1200×1000×900 | 1200×1000×160 | 1160×960×760 | ~5.5 | 50×50 | 1200 | 59 | No | Bulk logistics, large-volume finished product storage |
| Lightweight Type | 1030×840×500 | / | 1000×810×450 | 6 | 50×50 | 800 | ~35 | Yes | Light industrial products, e-commerce warehouse goods turnover |
Perfect for sorting and storing small to medium-sized e-commerce goods (e.g., electronics, clothing, accessories). The ventilated design prevents moisture, and foldable models save space during off-peak seasons.
Ideal for organizing automotive components (e.g., bolts, filters, small engines). The visible mesh allows quick inventory checks, and the lockable doors secure valuable parts from theft or damage.
Suitable for storing semi-finished products, tools, and raw materials in textile, electronics, or hardware factories. The adjustable mesh size accommodates different part sizes, and the robust structure withstands factory environments.
Great for retail warehouses to store and transport packaged goods, seasonal items, or display stock. The stackable design optimizes shelf space, and easy access doors speed up restocking.
With hot-dip galvanization or PVC coating, the Steel Wire Mesh Box resists corrosion in cold storage or chemical environments. It’s safe for storing refrigerated goods, chemical containers, or coastal warehouse inventory.
Standard types can be stacked 3–4 layers safely, while heavy-duty types support 3–4 layers. Static load capacity for heavy-duty models can be increased by 30%–50% when stationary.
Yes, Heavy-Duty Type 1/2 and Lightweight Type are foldable, reducing storage volume significantly. Standard and Large-Size types are non-foldable but stackable to save space.
Standard: Powder coating (anti-rust, wear-resistant). Optional: hot-dip galvanization (for outdoor/cold storage) or PVC coating (for acid-alkali resistance in coastal/chemical environments).
Absolutely. We offer customized mesh size (e.g., 60×60mm, 100×100mm) to prevent small items from falling out or to accommodate larger goods while maintaining structural integrity.
 |  |
 |  |  |  |
